An old man and a good friend of mine brought this fan to my shop. Usually I do not repair fans because they are too cheap and not worth the repair.




When I looked to his fan, it was really a fancy one. It has a digital display on it. It displays, speed, room temperature and different settings of the fan. It was really nice.

fan motor repair

When it was powered on, the side motors started working but the main motor that is suppose to spin the fan was completely dead.

Obviously, this van was getting its power but for some reason, the fan was not spinning. I spun the bar manually, trying to help the motor to kick in but nothing happened. I have seen this kind of problems before and to solve the problem, I have to get to the main motor.

how to fix fan motor

The customer brought only the motor and the stand and he did not bring the actual plastic fan that this on this metal bar.

how to repair fan motor

In order to get to the main motor, four screws had to come off. By the time I did that, this is what I saw.

fan motor fuse

Here is where the fun starts. Not really, it is the tricky part of the repair and you need a full concentration on this one because we are dealing with tiny wires that could break and mess up the magnetic coil. If you follow the arrows, there are wires that control the flow of electricity to the motor and wire that delivers different voltages to control the speed of the fan.  So, find out where the wires go and with a very sharp knife, start cutting the outside wires cover but very carefully, you do not want to cut and damage the wires inside.

fan motor temperature fuse

Once the wires cover was cut open, I located the main fuse. It is 2 amps, 115C. If the temperature of the motor exceeded that rate, the fuse will blow to protect the motor.




Once the fuse was replaced with a new one, I put everything back and the motor worked just fine.

fan motor troubleshooting and repair

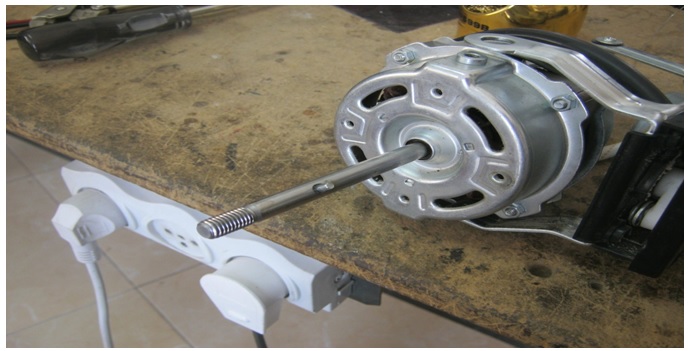

The motor is actually spinning but when I took a photo of it, it seems like the camera shutter froze the frame. Any way, it worked fine. Mission Accomplished.
