200 Ohm Resistor Open Circuited in SUNWA 360TRe Meter
As my previous experience of repairing the digital meter without much effort I have took out my old Analog Meter for repair by hoping giving one try if it doesn’t burnt out from inside.

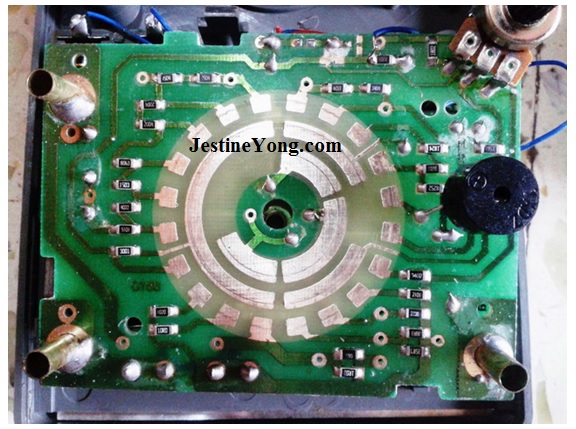

Took out PCB to get into the component side I have to be very careful to get the PCB out because no screw is used to hold the PCB used only plastic Letches.
On visual analyze I did not found any trace and parts damaged by burnout so as per the previous experience i have checked the entire component with magnifier glass.

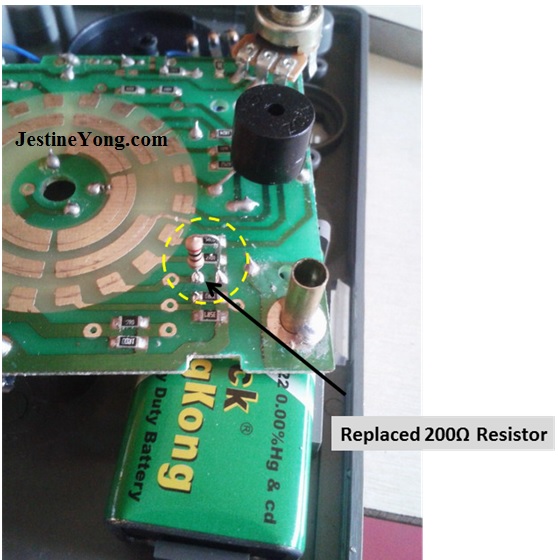

Testing on Multimeter I found this resistor 200Ω is open circuit .
Now time to test the meter….

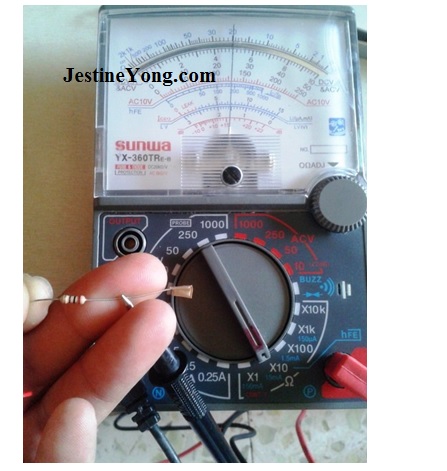

Checked 200Ω Resistor on X10 Range it shows perfect 200Ω.
Meter is back to the life!!!! and on the workbench again.
This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.
P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.
Note: You can check his previous repair articles in the link below:
https://www.electronicsrepairfaq.com/toshiba-laptop-froze-repaired
