5KV 0.7 Amp fuse replaced to restore the heating factor in a microwave oven. Model: Normandy

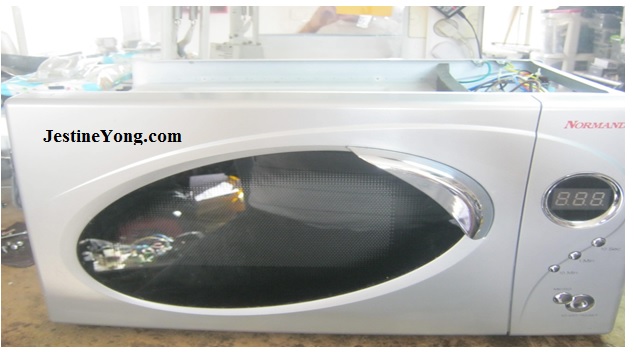

A china made microwave oven was brought to my shop with the complaint it does not heat up the food. In a case like this usually two reason why no heat produced in a microwave oven.
– Bad magnetron
– A blown fuse between the main capacitor and the magnetron.
– Bad magnetron and bad fuse
It looks really new and but still, checking it is essential to find out the problem.

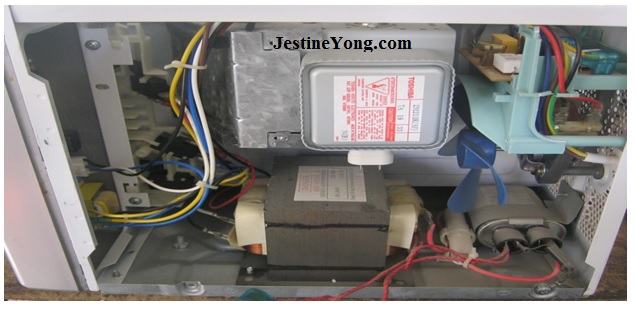

As seen, the magnetron, main power transformer, and the capacitor. First step it to discharge the main capacitor. Discharging is done by using two screw drives and touching the two main terminators of the capacitor. A very good idea is to wear gloves when discharging the capacitor. It is very dangerous to work on microwave ovens with the main capacitors still charged.

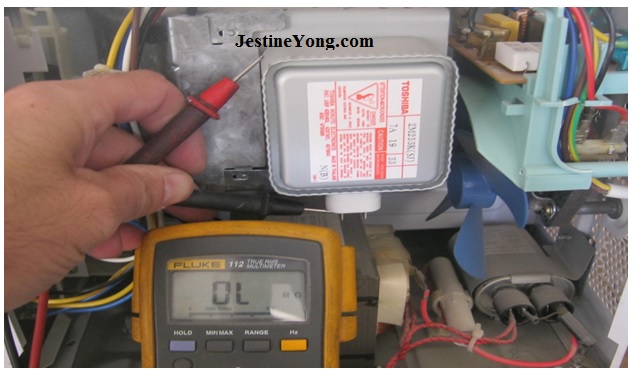

Checking the magnetron was my first priority. Put the meter to ohm setting and check the reading between the magnetron and its metal body. If you get any reading, the magnetron is faulty. As you can see, it is ok. In some cases, it does not show reading but still there might be a chance that it is faulty.
In my experience, I come across a lot of blown fuse due to electrical problem at home or just bad magnetron.

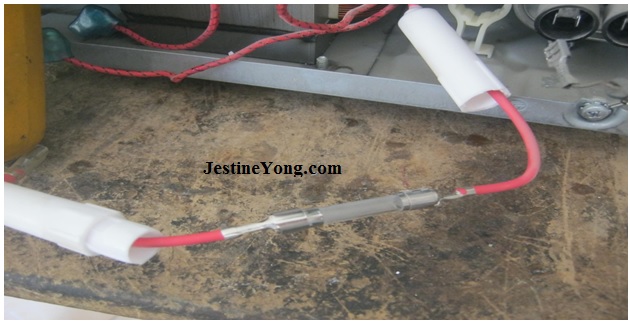

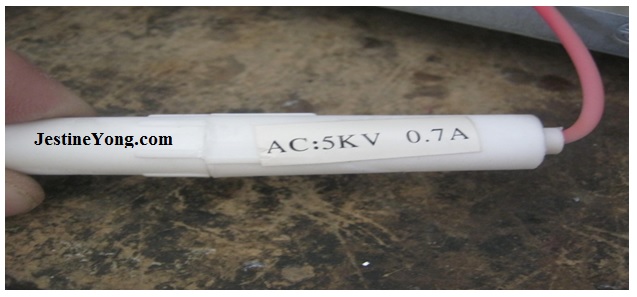

These fuses can handle up to 5k V but they come in 0.7 amps to protect the magnetron. Some technicians replace this fuse with another one but higher value. My advice to you always use the specified value otherwise, you will have problems
As expected, it was a blown fuse. I have a lot of these fuses at my shop and right away I replaced it with an intact one. Always test the microwave oven after replacing the fuse. It might be a bad magnetron showing good reading on the meter yet, will blow the fuse again.
In my case, the replacement of the fuse fixed the issue. Mission Accomplished.
