60 Watt Bulb Were Used In Fault Finding
Opened the TV for visual inspection and found fuse blown off
So first of all I have connected 60W bulb across the fuse terminal for fault finding.
The bulb lighten in its full intensity indicates shorting in the circuit.
So started troubleshooting

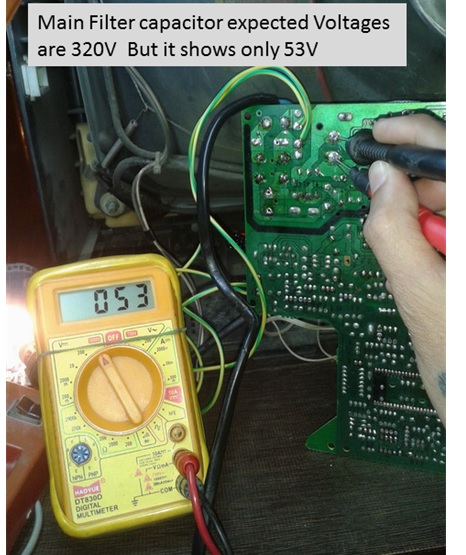

So I have turned off the unit and decided to start troubleshooting by cold testing method i.e. without powering unit and by testing surrounding components one by one. First I have removed the main filter capacitor and tested found OK.

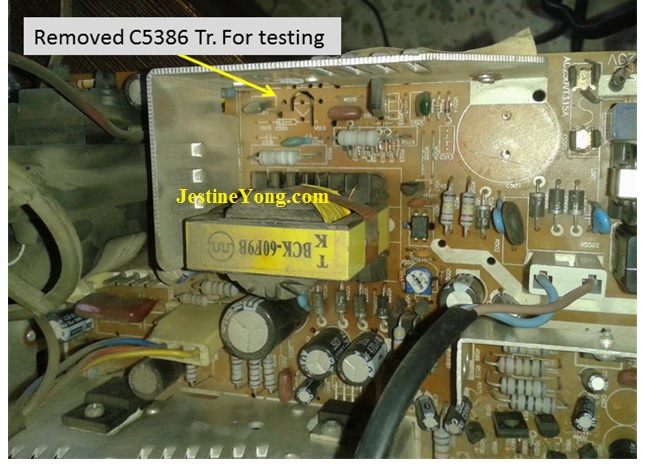

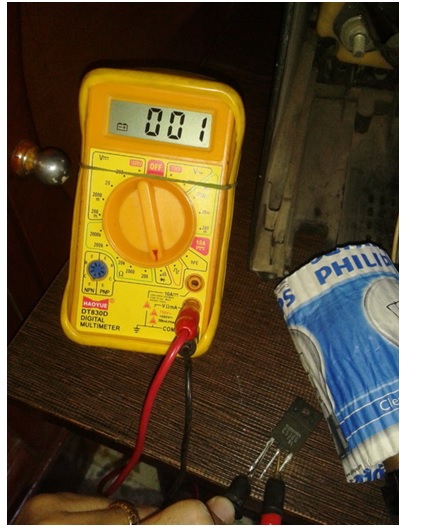

First culprit I have found is main switching Transistor C5386 meter showing transistor Base collector full short on diode test range.
Tested another surrounding components and Driver transistor also (most of time switching driver transistor also get Damage with main switching tr.) were found ok so further I have decided to replace the main transistor and check.

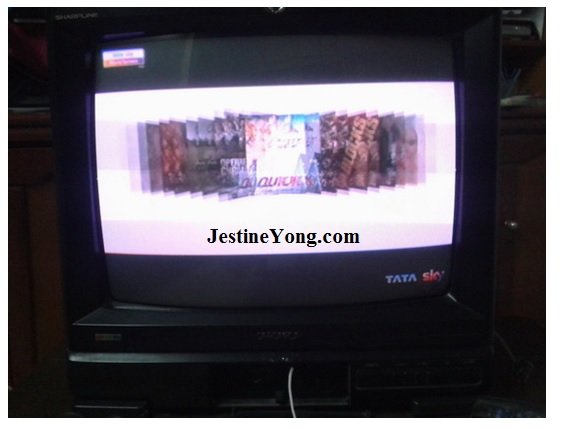

I have replaced the main transistor and turned on the TV this time Bulb lightened and immediately turned dim that is indication of now there is no shorting in power supply section hence I have applied video signal to AV port and now TV is back to the life.
This article was prepared for you by Yogesh Panchal who works as a Computer Hardware Engineer in Mumbai India.
