A Dead Blu Tooth Speaker Was Brought Back To Life
A customer who works in the olive wood carvings brought this speaker for repair. The main issue was it does not charge. By the look of it, I saw a lot of wood dust on it which indicated the line of work that he is in.
As you can see it is really nasty and dusty and if you noticed too that one of its button plastic was missing which was the mode switch.

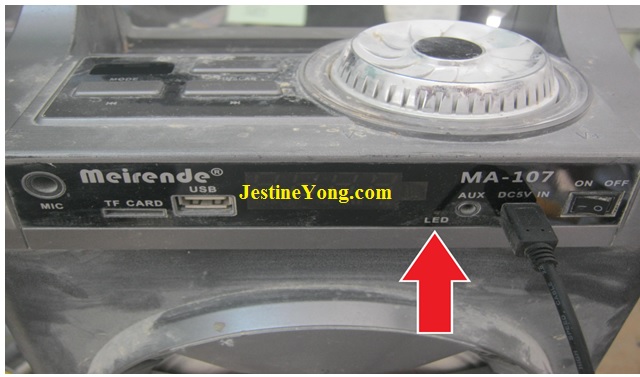

I plugged in the charging cable into the machine and the charging LED light was not on indicating a bad charging port or just dirty because of the wood dust that was covering the machine.

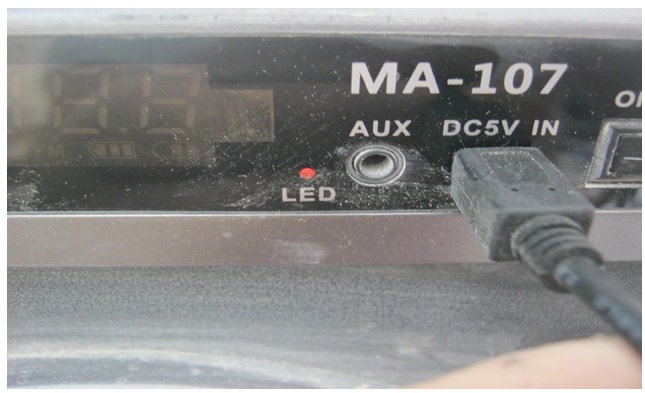

The moment I touched the charging cable with my fingers, the LED light came on and it was charging which a sign of dirty or may be cold soldering pins.
To find out the truth about this problem it was time to take it apart.

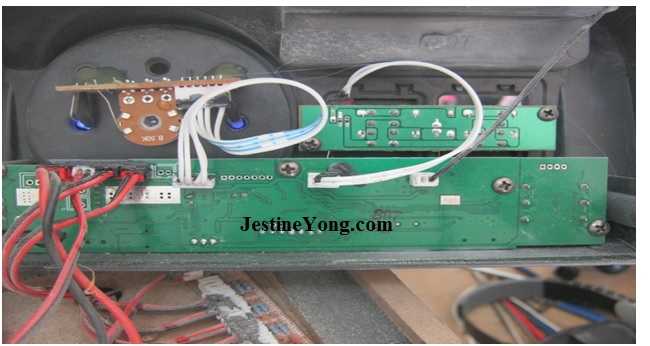

A few screws off and the top of the machine came out exposing the inside of the machine which was also full of wood dust and it had to be cleaned as well.

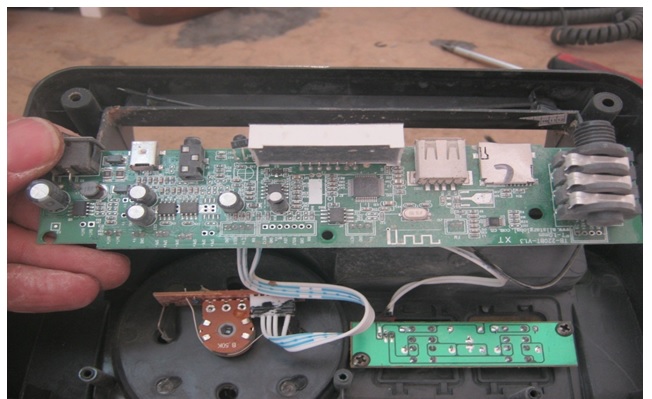

As I flipped the board to the other side more wood dust was seen so I cleaned it as well with a fine brush.
Finally I got to the main piece that needed my attention and of course before I do anything, I had to clean the charging port with a fine brush and an air blower to clean it before I spray some cleaning liquid there.

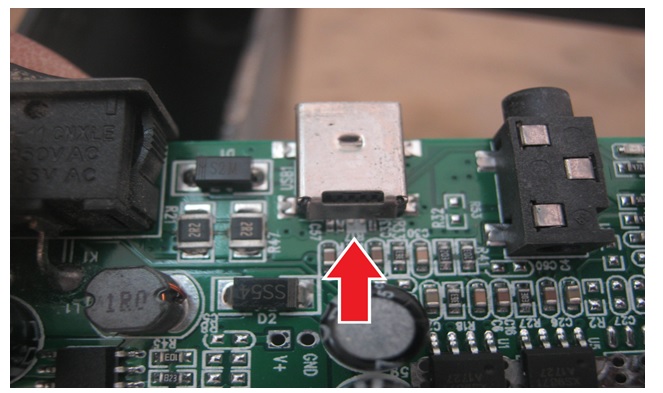

Now that I can see inside the charging port and check out the pins, they needed a touch of solder because they were kind of loose.

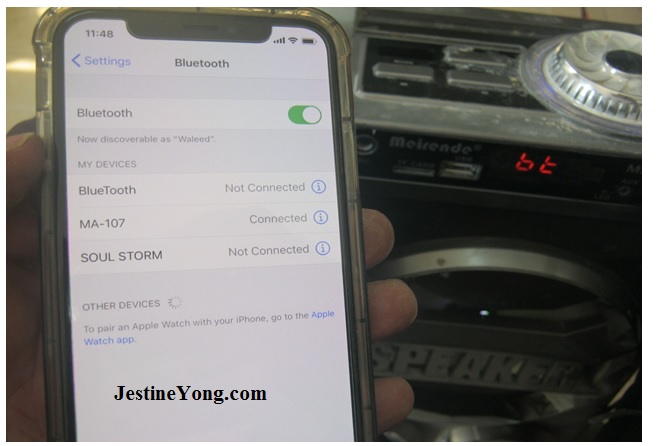

As I put the machine together and charged up the machine, it was charging fine. I could now connect the machine to my Iphone and test it out. It connected well and it had a nice sound to it. The name of the machine connection is MA-107.
Of course I spread all the buttons on this machine with a contact spray but before that, it was cleaned with a fine brush. The result was just great.
Of course it is going to be dirty and dusty again as soon as the customers use it in his work shop but nothing I can do about that.
Mission Accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.
Note: You can check his previous repair articles in the link below: https://www.electronicsrepairfaq.com/a-led-light-repair-and-modification
