A regular customer of mine brought his charger for repair. Although he lives far away from my shop yet he made the effort drive all the way to get his charger fixed.

how to fix asus charger

According to the customer this was the original charger and that is why he wanted to get fixed.




The moment I powered up the charger, I could hear some electrical zapping inside the charger which indicates a loose connection. When I checked with my multimeter, there was no reading whatsoever.

power laptop charge repair

Once I opened the charger, right away I was able to spot on the problem. There was a burnt mark (as you can see) on the right hand of the device.

how to fix charger

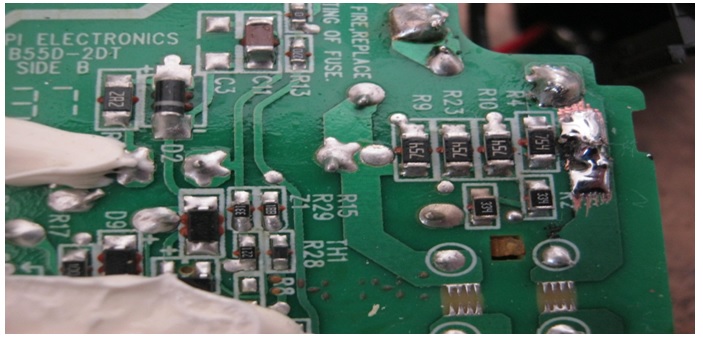

Here is a closer look to the faulty area.




That explained the electrical zapping sound that I heard when I powered up the device.

how to fix and repair asus charger

After cleaning the affected area and soldering everything back together, I checked for bad soldering joints but did not find any.

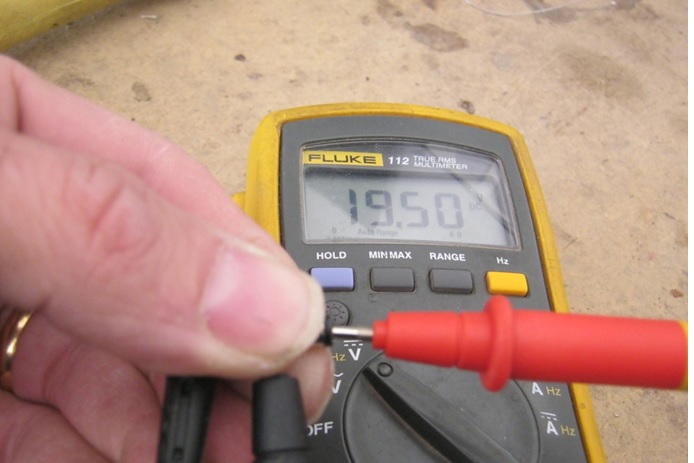

checking dc output voltage from charger

I called the customer to come and pick up his device. He was drinking coffee in a nearby coffee shop and that he is coming right away. I was surprised to see the customer coming to my shop and brought coffee with him.

We talked and had good laugh and I enjoyed every minutes of it.

Mission Accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
