A customer brought this security camera for repair. The main complaint it does not power up. This camera has a rotating head that covers all angles and it is wireless.

security camera fix

Since it has a power issue, I decided to open it and check it out.

security camera repair

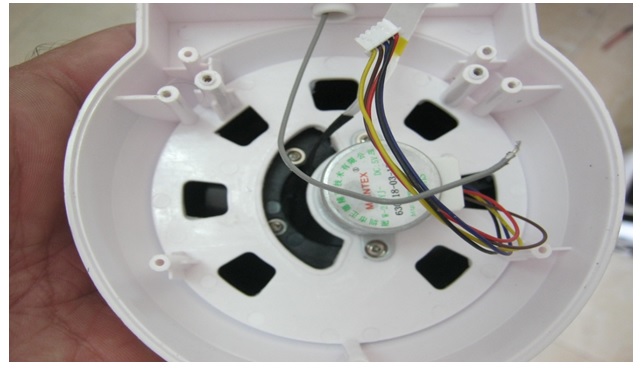

Once the top cover was off, I could see inside the body of the camera. It was only a board with different connections on it.




There are the motor, wireless connection cable and other sockets that have to do with power and camera issues.

security camera repair and fix

This is an extra shot taken after I took the board off. Again, the motor and wires connected to the camera.

security camera motherboard

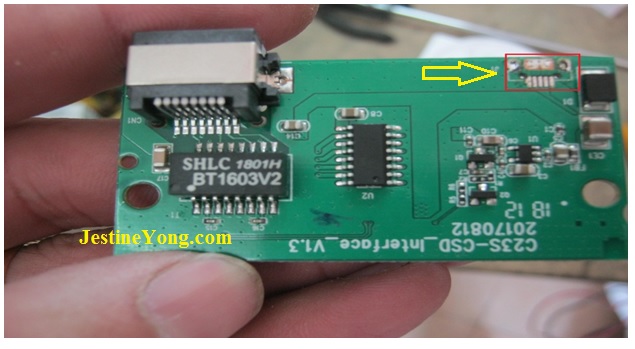

Did you see the power issue on this board? The mini USB charging socket was missing.

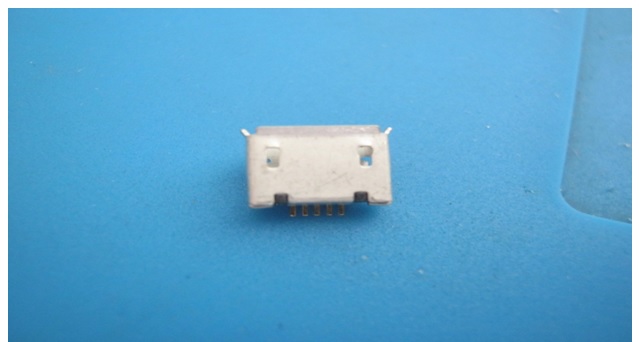

I asked the customer if he could find the missing piece and he said no. I had to look for a part like that at the hard ware store. At the hard ware store, the guy there has many sockets with different sizes. The down side of that is all of them are really bad quality and made in China. It did not cost much so I bought one to try it out.

small usb connector

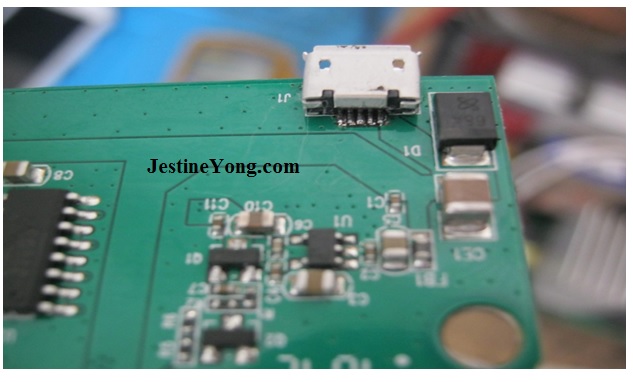

It fits perfectly on the logic board and it looked good

how to repair security camera

This is not the finished product because I think I took a photo of it before I soldered on board and it seems like I forgot to take a photo of it after the work was done. Anyway, here is the outcome of the repair.

how to fix security camera

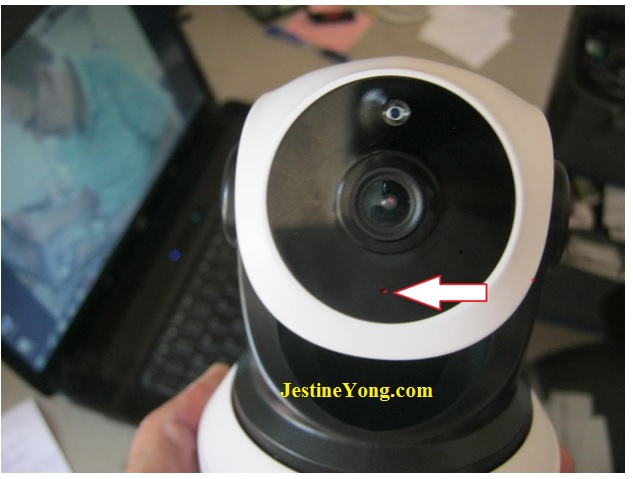

Once I connected the camera to my laptop, I could see the red LED on and the head started to rotate. Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.




P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check his previous repair articles in the link below:

https://www.electronicsrepairfaq.com/shorted-mosfet-irf9z24n



About

Jestine Yong works as an Electronics Repair Lecturer in Kuala Lumpur Malaysia and his training website is http://www.NoahtechElectronicsTraining.com. You can check out his repair blog at http://www.JestineYong.com

6 comments on “A dead security camera brought back to life

  1. albert van bemmelen says:

    Good job! Those mini USB connectors are not capable to withstand any force.

    1. Waleed Rishmawi says:

      Albert: yes, they are very fragile and break easily. also good replacements are hard to find.

  2. Parasuraman S says:

    Very minute work, handled very professionally! Well done!

    1. Waleed Rishmawi says:

      Parasuraman: thank you.

  3. Andre Gopee says:

    Those mini connectors are very hard to find so I keep all for any equipment that was scrap. Thanks for sharing.

    1. Waleed Rishmawi says:

      Andre: the bad ones are everywhere but the good ones are hard to find. it taken out from an old device, it would be much better quality. you are most welcome
