A dead vacuum cleaner brought back to life
This vacuum cleaner was brought to my shop for repair. It was a dead vacuum cleaner. When I powered it up, there was no indication of life in it.
It is an old machine and as you can see the model number and the brand name is found on this tag on the back of the machine.
I was really hesitant to repair such machine because from experience, any old one like this usually the motor is worn out.
To replace such motor, it cost the same as buying a new vacuum cleaner. My plan was to check it quickly and see what is in there.

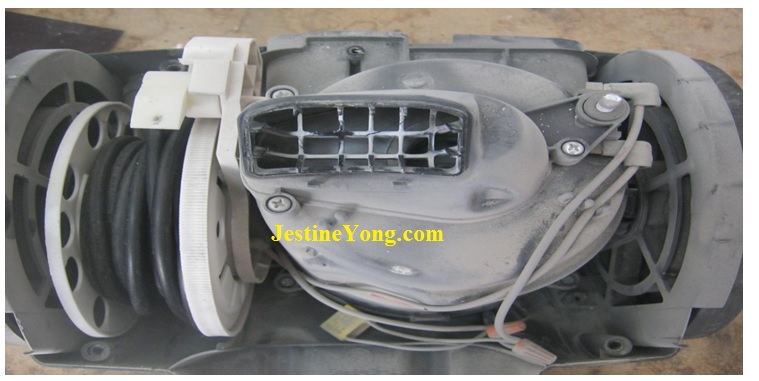

I took the cover off and as you can see it is very dusty. I used my air blower and it looks decent.
A quick check on the main power and I was getting the 220 volts necessary for the motor to run but for some reason it was not running.
The power was reaching the main power switch but when I pushed the power switch and nothing happened.
I checked the voltage reaching the other side of the power switch and guess what, there was none.
Few screws off and I was able to take the power switch off its base and check for continuity. It turns out to be faulty. If you look at the photo, you can see the two black notches there. I was not planning to open the switch instead, I used the air blower to blow away any dust in there and then I sprayed a contact solution in there and tried the machine again. Guess what, it worked fine.
It seems like all this week I was getting repairs that were easy to fix. I am not complaining though and as always Mission accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
