A welding technician brought this dead welding machine for repair. It is a Turkish made welding machine. Many people are buying the same model and they are cheap. From a repair point of view they are complicated to repair and the parts are hard to find.

howq to repair kauffe welding machine

I powered the machine to see what was wrong with it but it did not come on and I could not hear the fan running either.

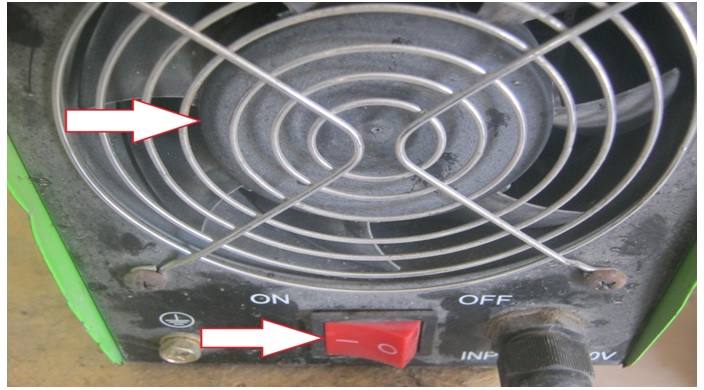

how to fix kauffe welding machine

As I looked to the power switch, it was suppose to have a red light on but there was not indicating a bad switch.




Was that the only issue with this welding machine? Let us find out.

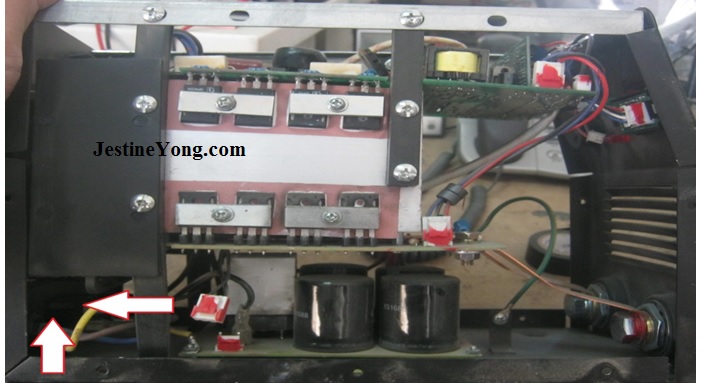

kauffe board repair

Main power switch is located at the bottom side of the welding machine but I managed to get to it to replace the faulty switch there.

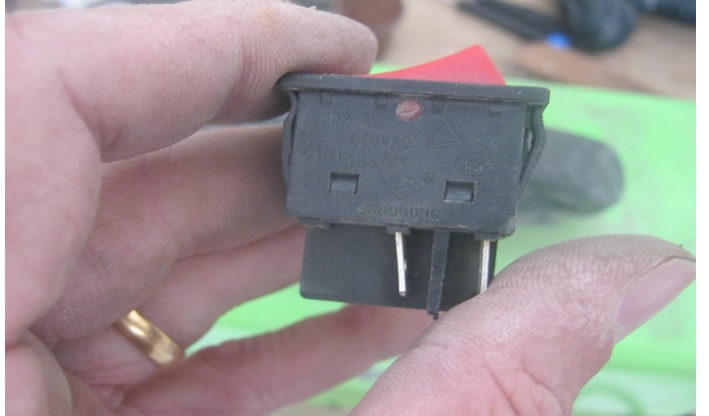

faulty on off switch

As expected the main power switch was faulty and needed a replacement but the moment I replaced it and powered on the machine, it came on but I could not hear the fan running, instead I could smell something burning.

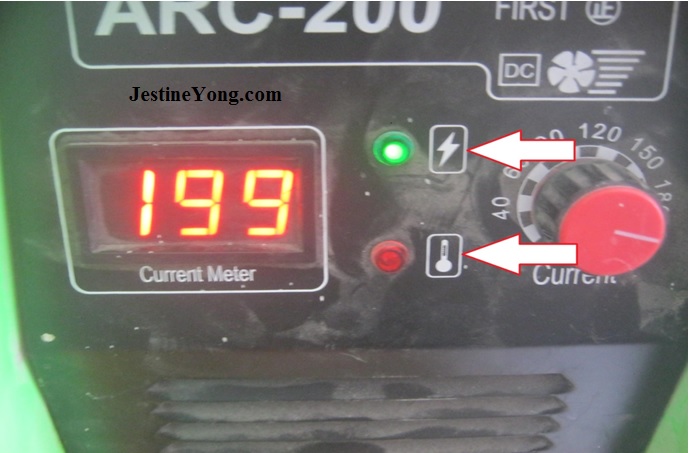

how to fix and repair kauffe welder machine

That was a good sign but if the fan is not running, this machine will eventually over heat and the damage will be worse than before.

welding fan spoilt

I uninstalled the fan out of its housing and I connected it to external power source and guess what? It did not spin and I could something burning again.




I have plenty of these fans in my shop; I replaced it with a used but in excellent condition one. Once I powered the machine again, it came on and this time the fan was spinning.

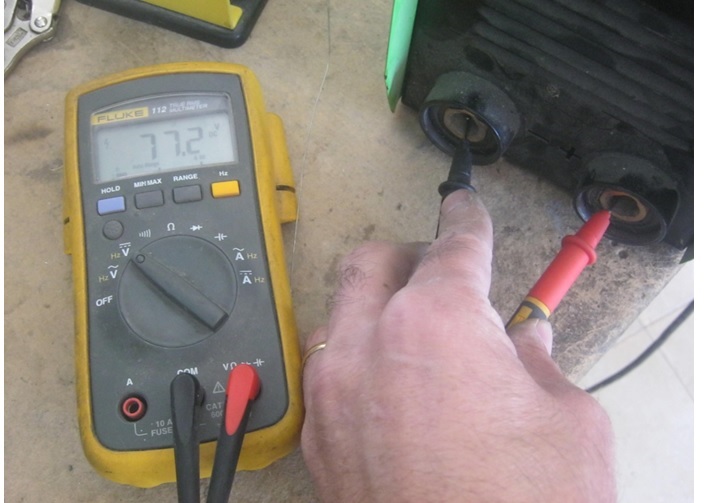

test output voltage of welding machine

The final test was to measure DC voltage readings at the negative and positive terminals of the machine and it was spot on.

Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.




P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check his previous repair articles in the link below:

https://www.electronicsrepairfaq.com/panasonic-cordless-phone-microphone-repair



About

Jestine Yong works as an Electronics Repair Lecturer in Kuala Lumpur Malaysia and his training website is http://www.NoahtechElectronicsTraining.com. You can check out his repair blog at http://www.JestineYong.com

6 comments on “A Dead Welding Machine Brought Back To Life. Model: Kauffe

  1. Albert van Bemmelen says:

    It is really unbelievable how many Welding machines turn up at your address. That you are able in fixing them all is no mystery anymore of course!

    1. Waleed Rishmawi says:

      Albert: yes, I went to every welding shops in town and offered my repair business and it seems like most welders are responding to his offer. I had some machines that could not fix but i try not to give up and try to fix them when I find the schematics for them otherwise I am sometimes get stuck with nasty repair issues.

  2. Parasuraman Subramanian says:

    A good article on Welding Machines! You are ‘yielding’ to repair ‘welding’ machines and looks like it has become a specialized passion! (LOL)

    1. Waleed Rishmawi says:

      Parasuraman: thanks man. yes my specialty is welding machine(LOL) and that is what the welding guys talking about. I am getting alot of calls from these guys telling me I am the welding machine doctor and If they want anything fixed, send it to Waleed. it is kind of nice to get this kind of reputation. have a blessed day.

  3. Ghashaan says:

    A job well done!

  4. Yogesh Panchal says:

    Waleed
    Good approach to get the Business!
