This device was brought to my shop for repair. It was a Casio calculator that has a tiny printer on it. The customer explained that he bought this machine recently and it was working fine. Later on I found out how wrong that customer’s statement was. Let us take a look

casio calculator fix

It is an old beat up calculator that was not worth the repair but for some reason the customer insisted that he want it fixed.




He said that even if it powers on but it was not working right, he still pays for my time spent on it. With that encouragement, I started the repair process.

casio calculator fix and repair

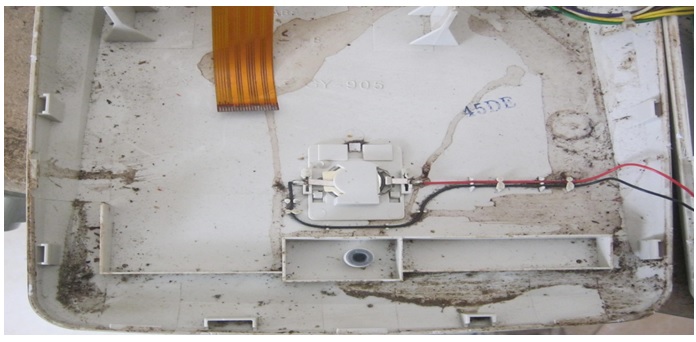

Here is my surprise when I opened the device. I believe it was sitting in a storage room for a while just the opposite of what the customer said about buying it recently and it was working fine.

casio calculator fix and repairing

That is the printer area that was so dirty and corroded and it looked nasty.

casio calculator repair

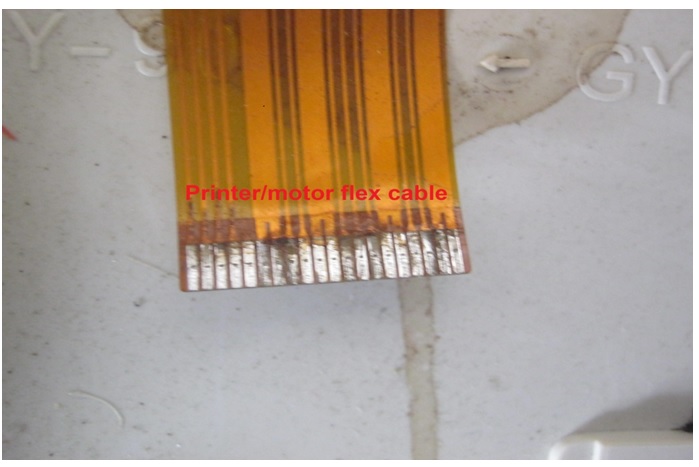

This is the flex cable that is coming from main board and connected to the printer motor. It was a total mess.

casio calculator circuit board

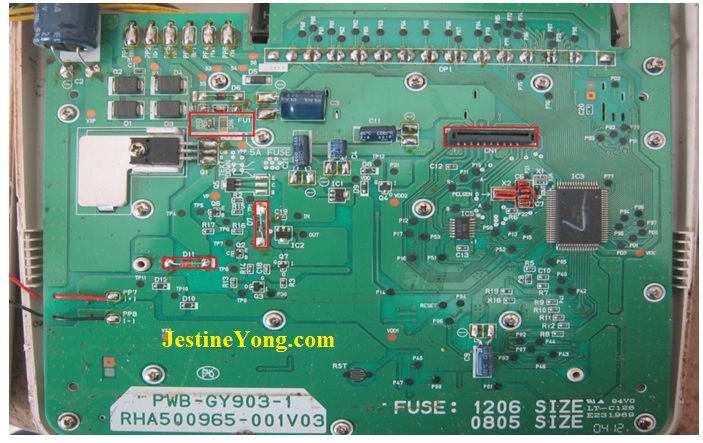

I marked the area where the parts have been replaced; D11, D7 and the big square where the fuse was open.




The main socket of the flex cable was cleaned as well from the inside and then was put together.

casio calculator circuit board repair

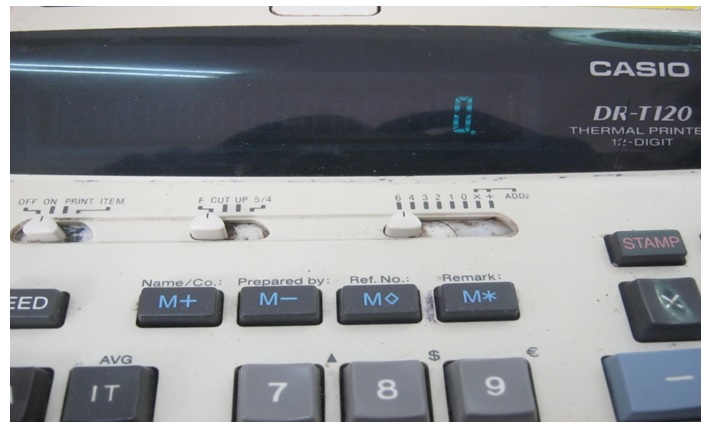

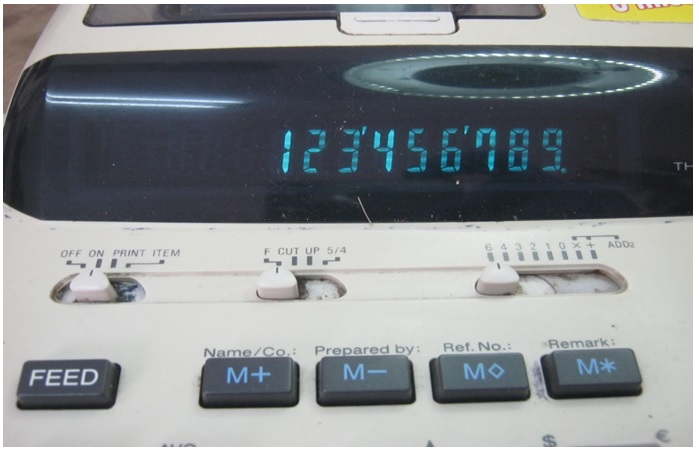

To my surprise, the device powered on and I was able to make calculations on it.

how to repair casio calculator ic

Everything on that machine worked fine expect the printer. The main motor was shorted and every time I press the fee button, the screen goes off. I called the customer and informed him with the half good news. He did not care that much about the printer and he was happy with the results.

Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.




P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check his previous repair articles in the link below:

https://www.electronicsrepairfaq.com/how-to-repair-a-dead-hp-laptop



About

Jestine Yong works as an Electronics Repair Lecturer in Kuala Lumpur Malaysia and his training website is http://www.NoahtechElectronicsTraining.com. You can check out his repair blog at http://www.JestineYong.com

12 comments on “A deserted calculator/printer brought back to life. Model: Casio DR-T120

  1. gouverneur says:

    Super repair THANK YOU

    1. Waleed Rishmawi says:

      gouverneur: you are most welcome

  2. Parasuraman S says:

    Excellent rescue operation! Saved a good calculator from dump!

    1. Waleed Rishmawi says:

      Parasuraman: thanks you my friend.

  3. Albert van Bemmelen says:

    The customer probably didn’t want to pay extra for a new printermotor. But I’m sure you could have fixed the machine completely!

    1. Waleed Rishmawi says:

      Albert: the customer was willing get the printer motor repaired but we could not find replacement for it. it is very easy to do.

        1. Waleed Rishmawi says:

          Albert: no my friend. too big to fit but thanks for trying. have a blessed day

  4. solomon says:

    nice one as always but i have one doubt….what makes you to change those diodes…i mean what happen to them are they shorted, open, or leaked …the reason i raise this question is i have some difficulties regarding to measuring diodes on board special zener diodes …i decided that they are good but i think because of this it will be difficult for me to repair certain equipment…….i mean leaky diodes so if it is possible can you send me some photos when you measure leaky diode sir….

  5. Devon Wilson. says:

    Great job restoring the machine. Respecting the question about leaky diodes, I will say that usually a leaky diode will test good under non-operating conditions but break down once power is applied. A voltage test should be able to fish out a leaky. diode. If the diode is shorting you can tell right away and so should you be able to tell if it is open.

  6. Imoudu Onwumah says:

    66

  7. sam says:

    Hello, I found your blog. I live in East Jerusalem and have a calculator from u.s. 120v plugged into 220v here in Palestine. Can you help me find and fix the fuse ?
