A door power controller board repaired
A guy from next door brought this board for repair. It was a door controller board and it seems like other technician was trying to fix it.

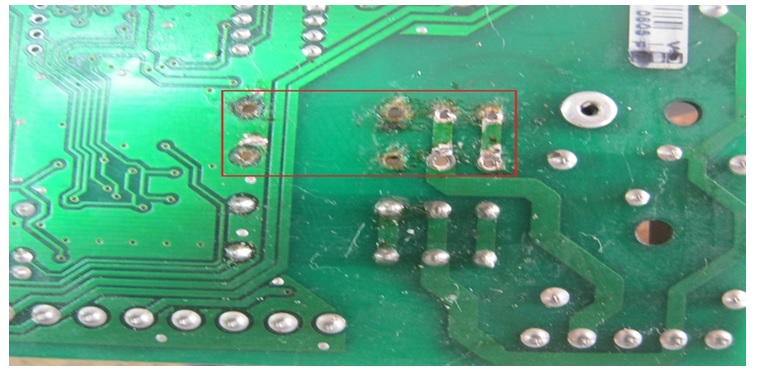

It looks fine from this side but when I looked on the other side of this board, I saw a big mess.
Take a look
Some of the soldering areas were missing and it was not connected right on board.
If you look closely to IC there, you will see a loose line and I think that was causing the malfunction on this board. The board was responding to the remote control signals which indicate that the remote control board was operational. The main problem was the 220 AC volts to operate the motor that opens the door were missing on both directions.

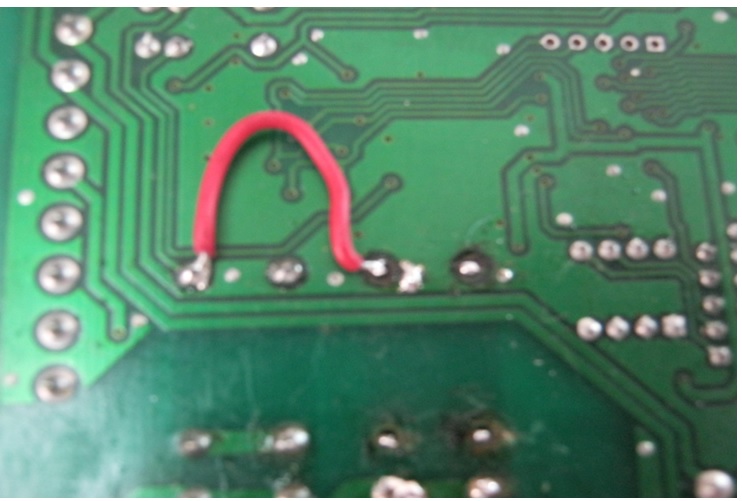

I reconnected the missing line back to the pin of the IC on that board and then I have to connect another missing line connecting the two relays together.
I made a bridge from one of the relay pins connecting it to the other pin of the relay. The pin on the right side of that bridge is the connection to the IC. I connected it with a very thin wire wrapping it around the pin of that relay.

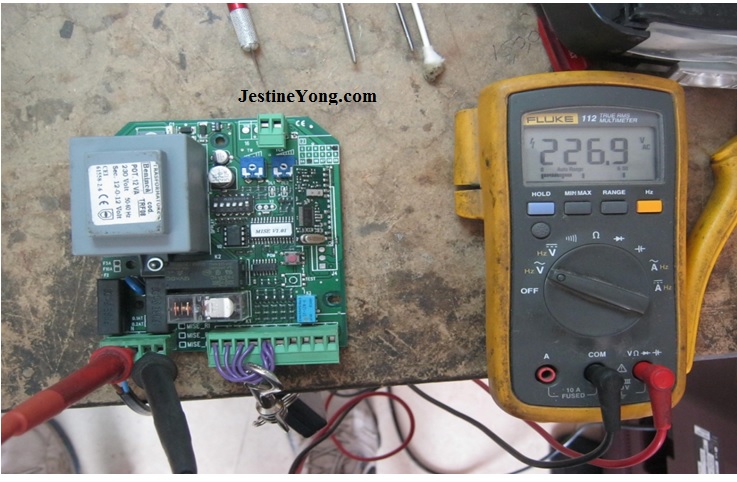

As you can see, left direction was getting the 226 AC volts.
Here you can see the right direction was getting the 226 AC voltages.
Mission accomplished.
