A Simple and Easy Modification to a Dead Battery Charger Repaired
My Pastor at church approached me with a question about repairing a dead charger that he found in the storage room. When I looked at that charger, I answered with a smile, of course I can. I took it to my shop the next day and started working on it.
That is a kind of old charger but it needed repair and that is why I am here for to fix things that needed repair no matter how old or bad any device might be.

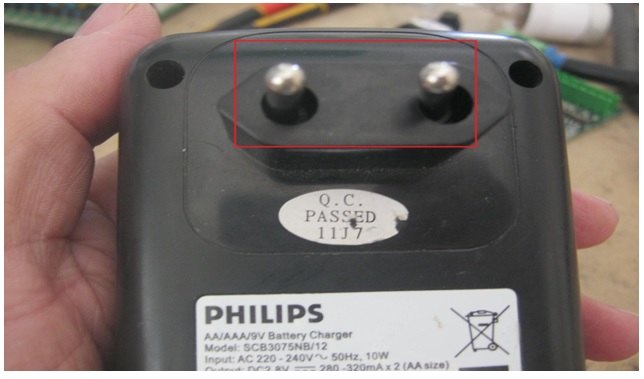

According to my Pastor, the only thing wrong with it was these AC broken pins and that is a problem that needed to be fixed.
Because the charger was sitting in the storage room for a long time corrosion was present on this device and it had to be cleaned as well.
Before doing any cleaning on this device, I just want to make sure it was up and running. Here is what I did.

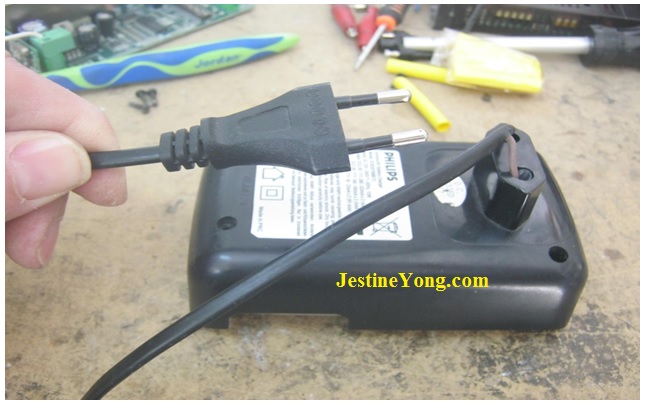

I took the back cover off and soldered an wire with a plug to the two pins of the device and powered it up.

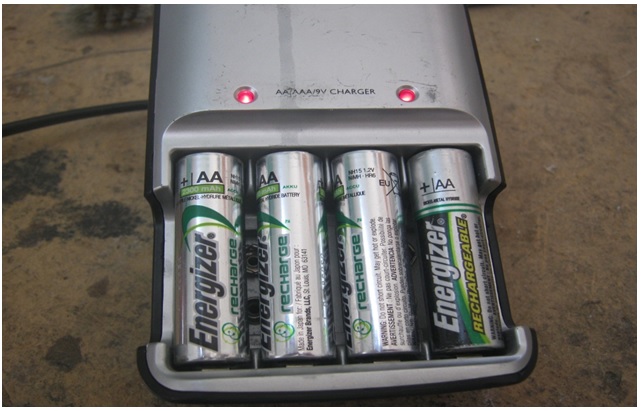

I added four batteries to the charger and right away, the device was up and charging. Now it was logical to clean the charging pins and make sure they were spotless.
Mission Accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
