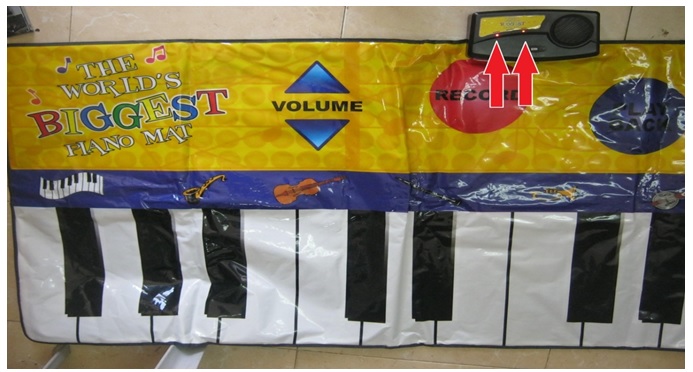

An organization that deals with mentally and physically challenged children brought this device for repair. It is a game for kids to step on and make music.




The device comes on but there was no sound coming out of it.

battery corroded

In this situation, either it has a bad speaker or a bad amplifier chip.

musical game repair

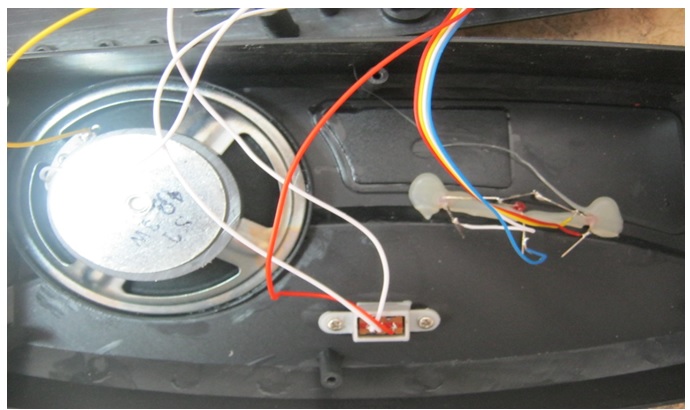

Took some screws off and exposed the speaker but when I tested it out, it was fine

My next step is to check if the amp IC was getting any power or the IC chip itself was bad.

musical game fix

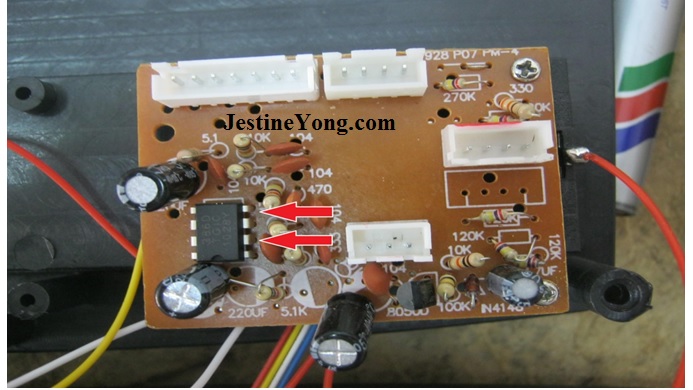

The IC part number is 386D.  I found it by the name of LM386 and the VS pin was pin number 6. When I checked the voltage there is was almost 1 volts and that was not right. It is too low to operate such chip.




I disconnected the pin 6 and tested voltage reading there and it was still the same. I traced the chip backwards and tested all the parts there but all checked ok.

I decided to replace the batteries and see maybe they are not giving enough power to operate.

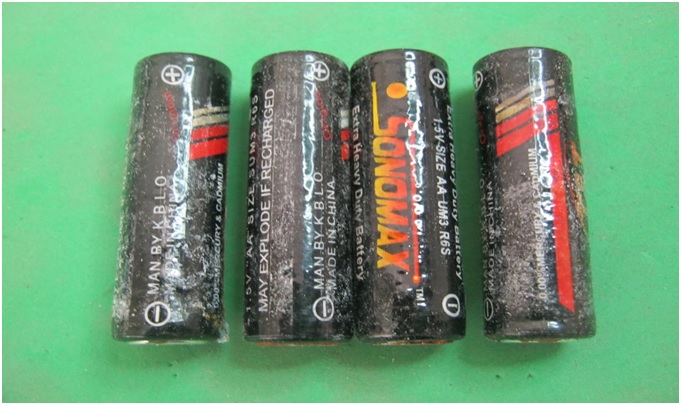

To my surprise look what I found.

how to fix musical game

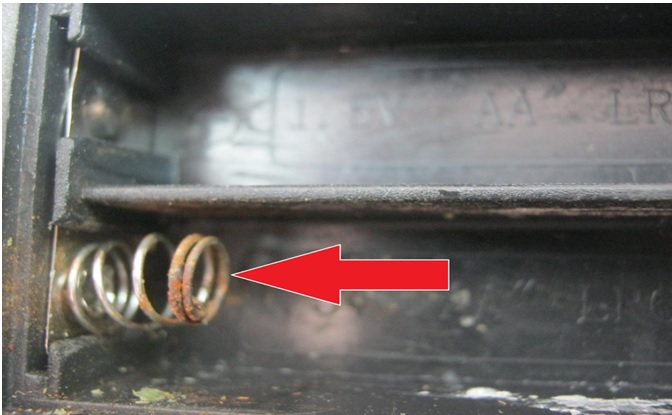

It was rusty; take a look to the other surprise I found.

bad batteries

I did not bother to check the batteries because the power LED was on. I assumed the power was well but it was not ok. That was a shock to me as well. Once the batteries were replaced and the rusty part cleaned, the toy was alive again.

Sometimes we assume the worst but most of the time; it is just a simple fix.

Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check his previous repair articles in the link below:

https://www.electronicsrepairfaq.com/a-dead-air-condition-board-brought-back-to-life



About

Jestine Yong works as an Electronics Repair Lecturer in Kuala Lumpur Malaysia and his training website is http://www.NoahtechElectronicsTraining.com. You can check out his repair blog at http://www.JestineYong.com

7 comments on “A Step On Musical Game Repaired

  1. Joe says:

    Hello Waleed,

    Sometine we forget or skip the obvious… happened to me many times!! Glad you fixed it… nice article..

    Joe
    JGA Computer & Electronic Repair Center
    Casselberry, Florida

  2. Bernie Scott says:

    Good job…….Very good…..This is a great site..I come here to read about the different repairs all the time……I am into music equipment repair but do learn quite a lot from other types of electronic repair info…..keep up the good work….

  3. Albert van Bemmelen says:

    A few months ago I read a very interesting short article about how to easily clean heavily corroded electric contacts that are completely rusty because of leaking batteries. Like the article said I just used the soap we use daily in our kitchen to clean our dishes and pots with. And I let the board with its contacts completely soak in that soap for a day. And I was able to brush the mostly green corroded contacts completely clean afterwards. The best tip in years that I read about in Electronics magazine Elektor. It is all about Basic chemistry!

  4. Lee says:

    I had a kids toy to repair about 10 years ago and I was having similar problems.
    eventually I checked the battery contacts that looked fine, but on further inspection I found corrosion that was minute that it created enough resistance to make the toy not work properly.

  5. Tom Wyatt says:

    I just repaired my digital clock that sits outside and stopped working
    with a fairly new C cell battery. Parts of the digital would come on
    for a split second then go out, different parts of the display.
    Cked the battery voltage ok, cked the batt terminals ,ok
    sanded the battery terminals, then everything ok.
    Oxidation from mooisture in the air creates all kind of problems.
    I formerly worked at a car rental business were kept busy all day
    putting out airbag warning lights from oxidized air bag sensor connections.

  6. thoma says:

    Hi, great work
    how did you clean the rusty part?
    Thanks

  7. Muhammad Ashfaq says:

    yes its the factor also.
