A customer walked into my shop carrying an expensive drill charger and two batteries. He explained that the charger was dead and he wanted it to be fixed so he can test and charge these two batteries.

battery charger repair

When I powered up the device, the green light should come on to indicate it readiness to charge the battery.




For some reason, the charger was completely dead.

18v battery charger repair

The charger uses this kind of batteries and from looking at them and testing them with my voltmeter, they were also completely dead. My recommendation was not to fix the charger because when it is fixed, the customer has to buy new batteries to charge them on that charger. The customer insisted on the repair of this charger and so here it goes.

drill 18v battery charger repair

If you look closely, you will see that someone tried to get it fixed and for some reason he did or could not.




If you look to the fuse, you will see the added soldering joints on it but that could not bring the charger back to life.

how to repair battery charger

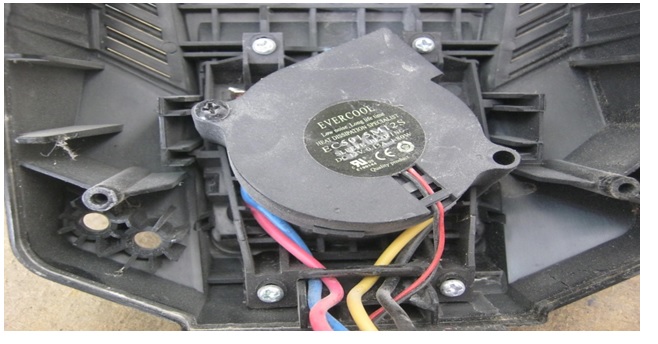

This is a fan located under the charging pin and it supposed to come on during the charging cycle according to the user manual of the charger.

battery charger circuit board

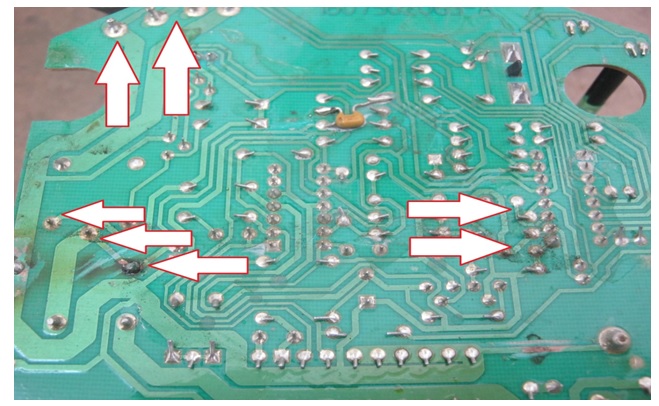

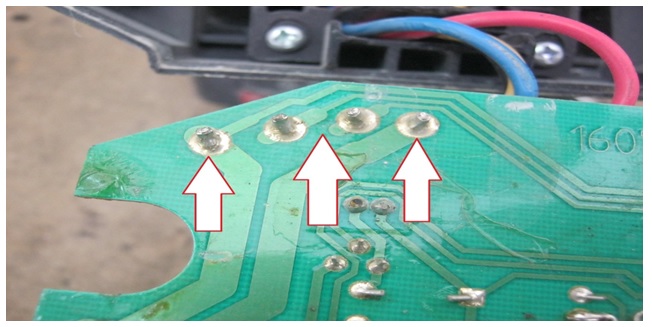

The moment I looked to the board of the charger, I noticed right away the cold soldering joints which I think were the main reason why the charger was dead. I was getting voltage reading on the capacitors but beyond that area, I was getting nothing.

dry joints in circuit board

This was the easiest repair I have ever encountered.

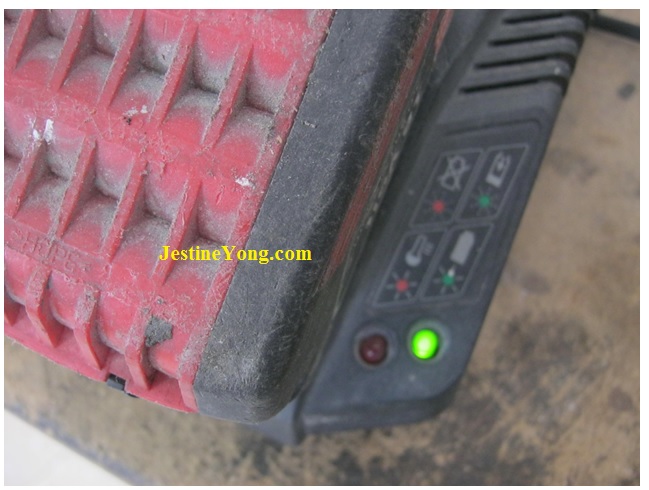

With my soldering station on and my fume extractor fan running, I re soldered all these connections on board. This was the result.

how to fix drill battery charger

Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.

P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check his previous repair articles in the link below:

https://www.electronicsrepairfaq.com/a-dead-exit-sign-brought-back-to-life
