Bad DC Motor In Sony Hi-Fi

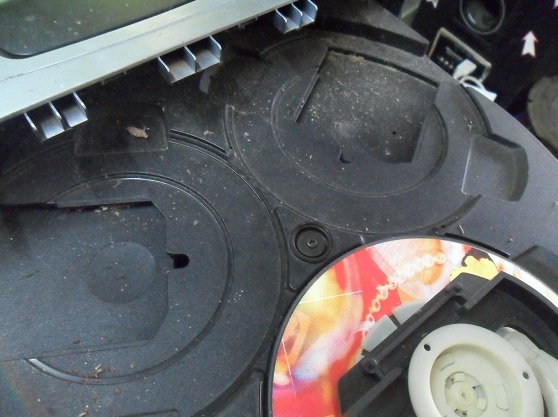

This Sony Hi-Fi came in for repair with the complaint of tray can’t be opened even though the front button already been pressed. The display showed open mode but there was no movement from the tray. I opened the cover and head straight to the connector to check on the voltages. All the signals were printed on the circuit board which was easy for me to perform the voltage testing.

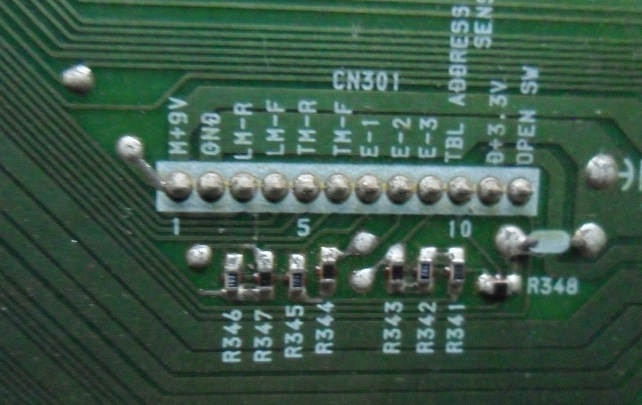

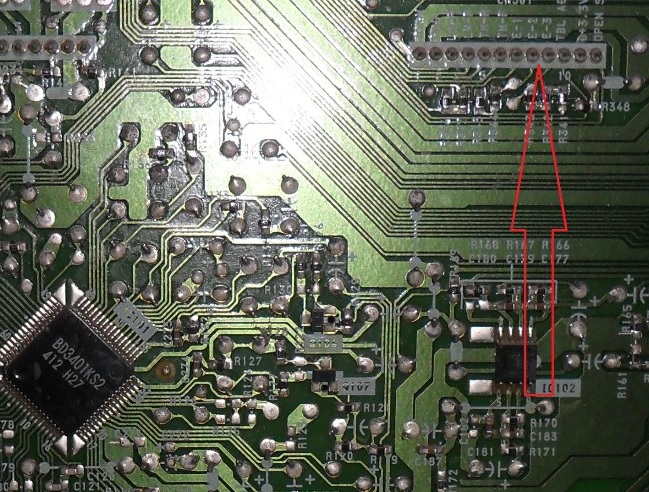

The voltages that I intended to check were the 9 volt and 3.3 volt-see the two photos below:

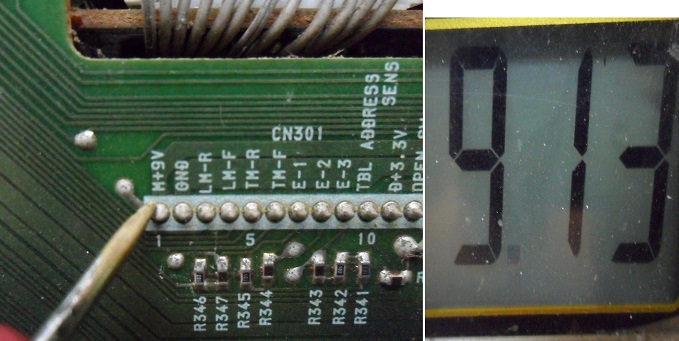

The 9 volt and 3.3 volt DC were checked to be good.
The 9 volt is the supply voltage to the main CD tray motor.
I applied an external 9 volt to the DC motor and it did not rotate at all and confirmed spoilt.
I searched from my compartment and found a used DC motor but working and fixed it the could open now.
Conclusion- It was a pretty straight forward repair. Assuming if there is no 9 volt DC then I have to trace backward and see where the 9 volt had gone missing. But in this case, it was just a motor fault. Ok see you again in the next repair article.
