Blue Screen In TV Repaired
This Syber CRT TV 21″ came in with the complaint of no tuning and no channel. Later the display became blue screen- see the photo below:
I took out the cover and head straight to the tuner section to see if there is any dry joints or not. There were no dry joints found so I deceided to check on the Tuner important voltages with power On.

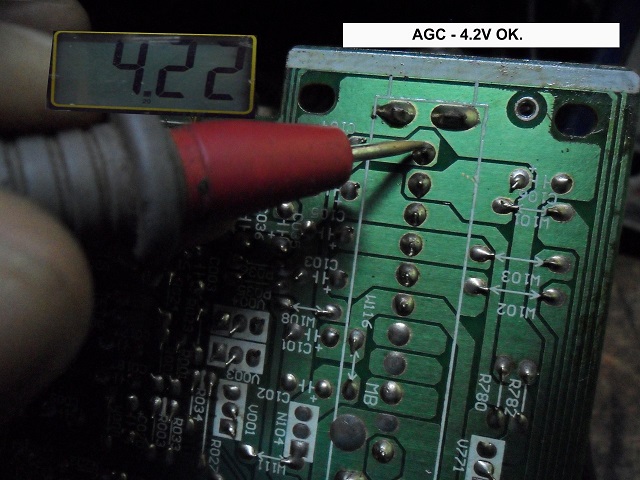

The first point I checked was the AGC voltage and it was found to be good (4.2 volt).

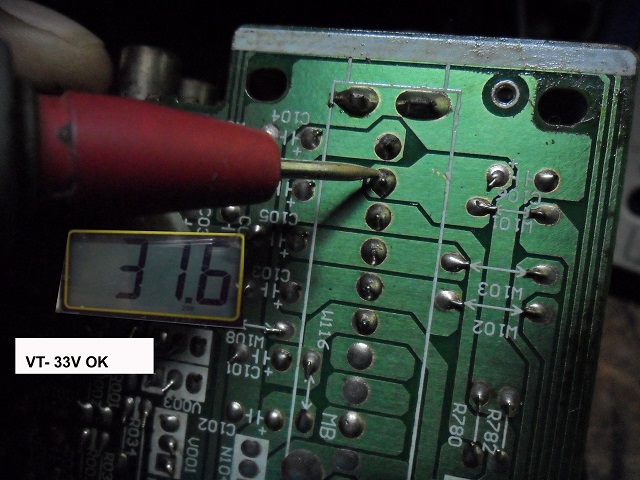

Next I checked on the VT voltage and it was found to be good too (33 volt)-see the photo below:

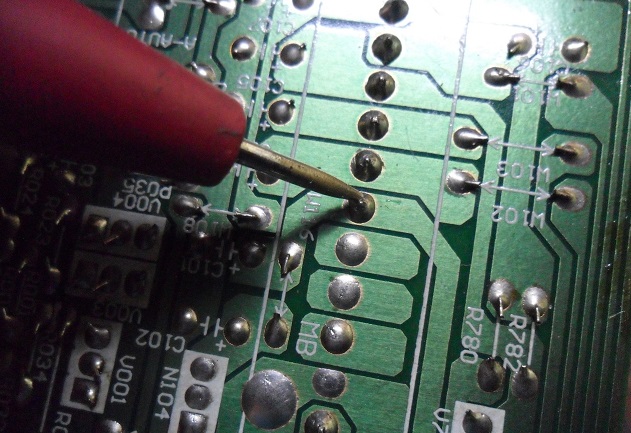

The other tuner pins all the voltages were found to be good.
From experience, if all the voltages in the Tuner pins are good then the biggest suspect is the tuner itself.

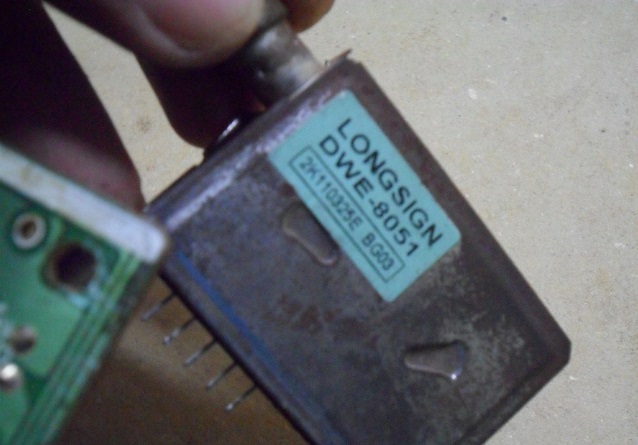

I kept a used tuner in my compartment and took it out and fixed into the TV and powered On.
Guess what? All the channels came back. I was delighted because I can charge my customer.
Conclusion- For your information, it is not easy to repair tuner circuitry because of lack of schematic and the parts are very small. The time spent on repairing tuner just not worth it. Get a used or new tuner so that the extra time you can use it to repair some other equipment. Ok will see you again in the next article.
This article was prepared for you by Suranga Bandara who owns an Electronics repair shop in Anuradapura, Sri Lanka.
Please give a support by clicking on the social buttons below. Your feedback on the post is welcome. Please leave it in the comments. If you have electronic repair articles to share with us, please contact us HERE.
P.S- If you enjoyed reading the above article, click here to subscribe to my blog (free subscription). That way, you’ll never miss a post. You can also forward this website link to your friends and colleagues-thanks!
Note: You may check out previous post about fixing active speaker in the below link:
https://www.electronicsrepairfaq.com/bad-dc-motor-in-sony-hi-fi
