An old man approached me when I was getting my son from school. His grandson is my son’s class mate. He asked me if I repair car alarm remote controls. I do not have any experience in repairing such items but I was willing to give it a try.

car alarm repair

This is how it looked when I got it from the customer.




All wrapped in scotch tape. The moment I took the scotch tape off, the remote control fell apart.

how to fix car alarm

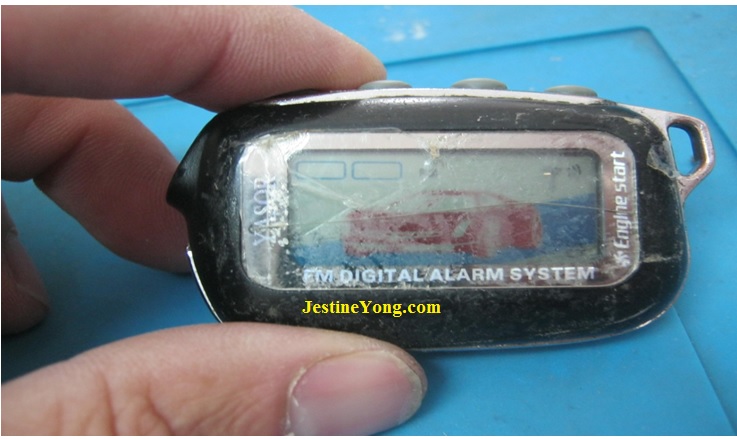

This is how it looked after taking the scotch tape off and glued it back on with super glues. Not the best look but it looked much better than before.

how to repair car alarm

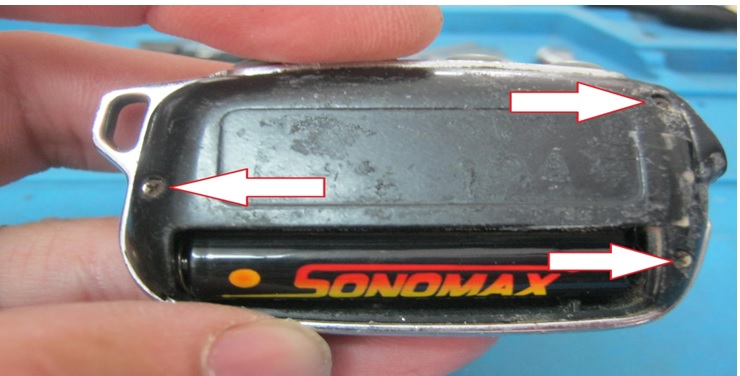

I put a battery in it and turned it on and I could hear some music melodies started to play and lights came on but the display was flickering. According to the customer, this was a working remote control but the main problem was the details on the screen were flicking and it was annoying to him.




I took the screws off and took it apart. I did not know what to expect because like I said I had no experience in repairing such devices.

car alarm circuit board

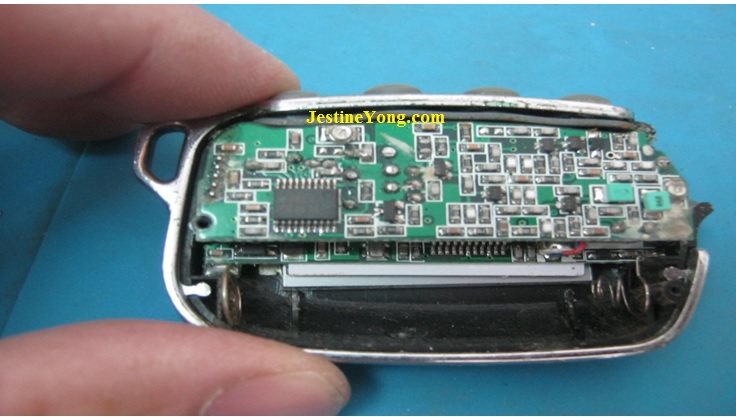

It looked clean on the inside. I checked it closely with my microscope for cold soldering joints and I saw a few. Re soldering these cold joints did not help the issue. When I took it totally apart, something fell off the remote control.

remote control car repair

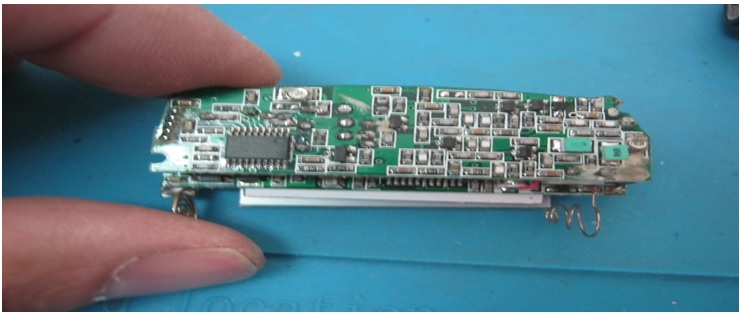

These are two boards attached to each other using four pins on the left and three pins on the right.

how to fix car remote control

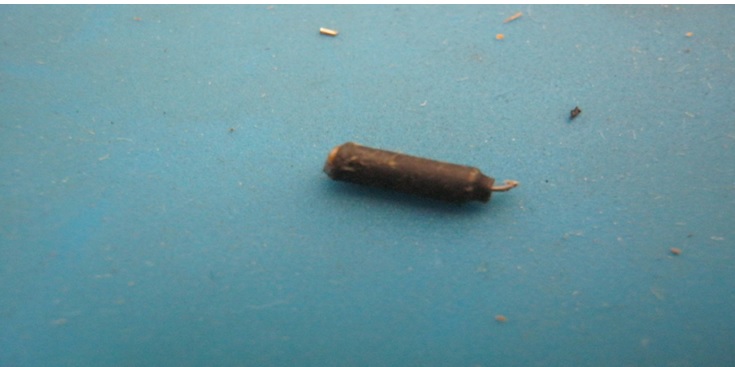

This part fell off from inside the remote control and I had no idea where it came from in the circuit. I called the customer and asked him to come to the shop because he told me that he had another pair that is working fine. Instead of going through the headache finding out, I have the answer just about five minute away.

I opened the other remote control and located where the missing part was. Sorry I could not take a photo of it because the customer was in the shop.

car remote control circuit board

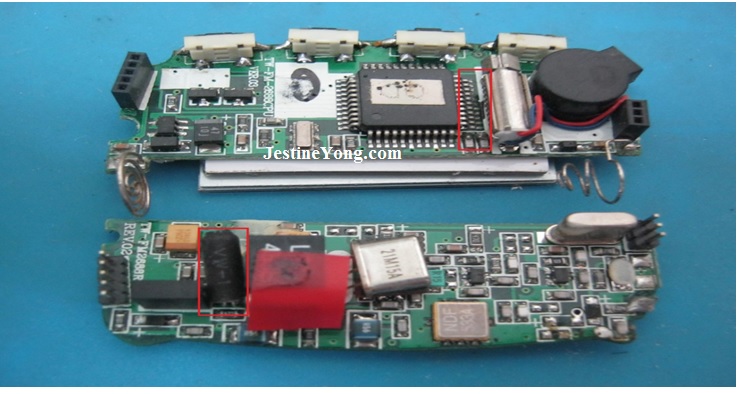

As you can see, there is the same piece on the other lower circuit board and it is already there and the missing one is on the upper circuit board marked in red. This piece was a frequency crystal that was loose on board. I did not know what it was and I could not find any information about it. It was marked MK-1.

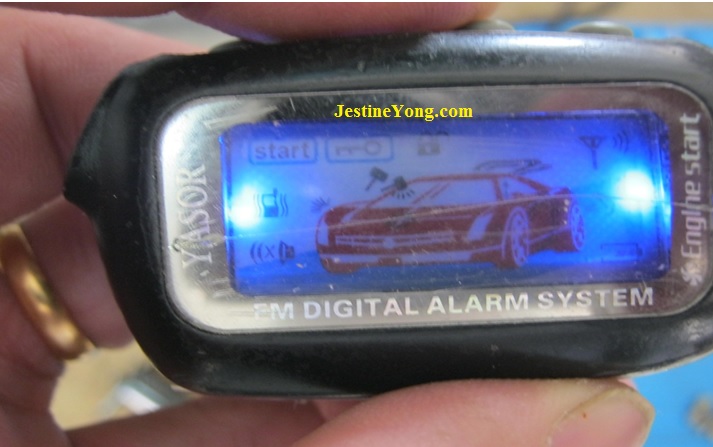

All that I care about was once I soldered it back to the board, the flicking was gone and the remote has steady information on the screen.

how to repair and fix car remote control

Mission Accomplished.
