A simple repair brought this music box back to life. Model: Toslevo

A manager of a super Market across the street shouted my name out and asked me to come over and check something out in his store. I was wondering what was going on. When I crossed the street, he told me that his music box that provides the music in his store stopped working.

music box repair

It was a China made music box and it was really cheap and bad quality.




I advised him to get a better one instead of repairing it because it might break down again. He insisted on repairing this one.

how to repair music box

I plugged the power adapter to the power socket but I did not see any sign of life. As you can see in the photo, the display was completely dead. But when I wiggled the power plug, the machine came back to life.

how to fix music box

It was clearly a power supply cable, male plug or the female plug issue on the device. I checked the power using my multi meter and I wiggled the wire, I could see that the cable was damaged and it has to be replaced.

music box cable

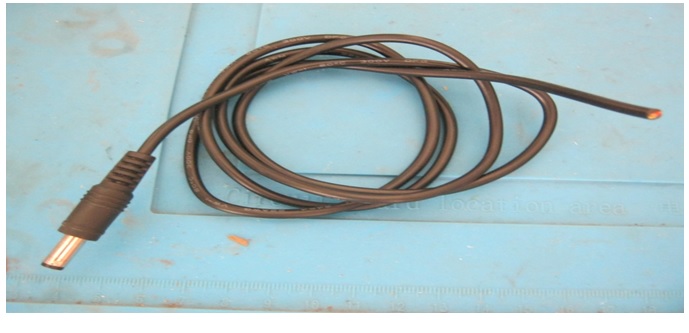

Once I replaced the damaged cable (in photo) with a new one and powered up the device, it did not come one. When I wiggled the plug again, the power came on.




I know the cable I just replaced was fine but it seems like the female plug inside the machine either loose or broken.

how to repair and fix music box

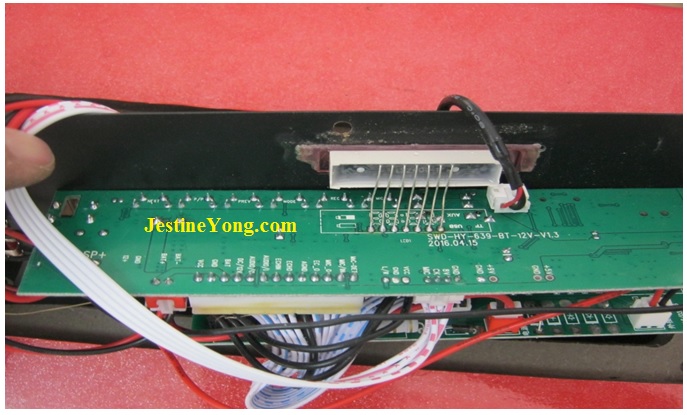

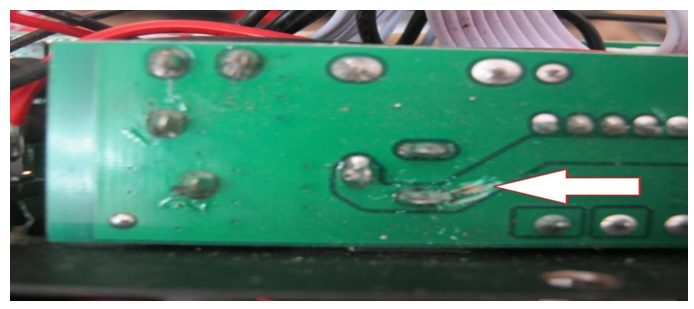

Few screws came off and I got inside the machine. When I got to the plug connected to the board, it was loose and it has to be re soldered back to the board.

repairing music box

Once I did that, the machine is alive again. Mission Accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.




P.S- Do you know of any your friends who would benefit from this content that you are reading now? If so, forward this website to your friends or you can invite your friends to subscribe to my newsletter for free in this Link.

Note: You can check his previous repair articles in the link below:

https://www.electronicsrepairfaq.com/burnt-mark-in-hoverboard-power-supply-circuit-board
