Dead Fuse, High Voltage Diode and Capacitor Found In Microwave Oven
This Microwave oven was brought for repair and the main complaint was, it went dead while trying to heat up something. As the customer explained the situation and at the same time he told me that this device is urgently needed.
As you all know how much I hate the LG products but because the customer is also a friend of mine, I was willing to help out. So, here it goes.
the first thing I did when taking the cover off, is to discharge the main capacitor and I did that by touching the two terminals of the capacitor with two screw drivers with their handles insulated. Shockingly, the main capacitor was completely discharged already. Usually I get a little zap but this time, it was dead.
The 12 amp fuse on this device was already open and it had to be replaced. Before I replaced the fuse, I did some checking.
First thing I tested was the magnetron and I did that by setting the multi meter to ohm setting and checking the resistance between its terminals and its body and I should get no reading. If I get any reading, the magnetron is defective and it had to be replaced. It checked out fine
The second part for testing was the main diode which is called the bleeder. It is usually connected to the main capacitors. When checking this diode, I was suppose to get no reading on it both ways but when I checked, I got reading on both sides and this is a clear indication that it is faulty.
From experience, if this was shorted, I also check and replace the main capacitor even if it was giving me a good reading.

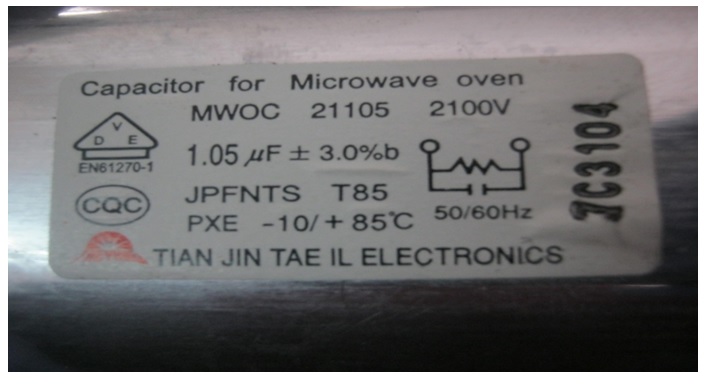

When I checked it with my multi meter, the reading was way below the 1.05 UF and therefore had to be replaced.

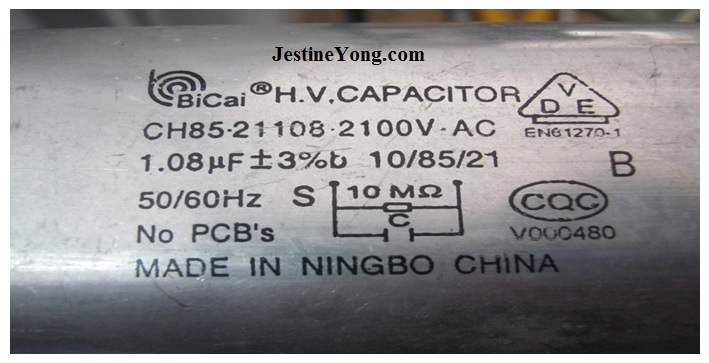

This is the capacitor replacement. It was a little bit higher in rating but it should work fine.
So far, I have replaced the diode, the capacitor and the main fuse. It was time to power on the microwave oven and hope for the best.

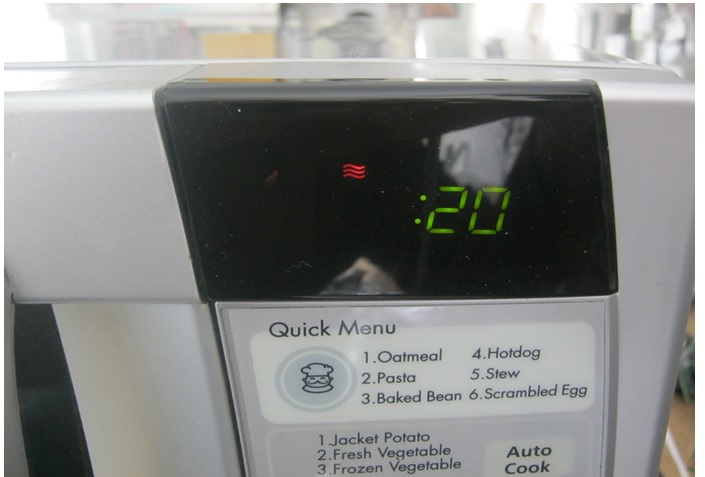

I put the cover back and powered up the microwave. I put a cup full of water inside and started the microwave oven and as expected, it was working the way it should be.
The microwave oven did not go into shut down, the water got hot and the customer was happy, what more can I ask for.
Mission accomplished.
