Doorbell Repaired
After reaching home I have pushed my door bell switch but no one is opening the door as I can hear some children’s playing noise from inside I waited outside but there is no response from inside. So I knocked door from outside and after waiting for some time they opened the door after entering in the home and just for confirm again I have ring a bell but it is not ringing.
So first I have refreshed myself and after some time of relaxing I have started troubleshooting the bell. First I have checked doorbell switch for working found ok so I removed the doorbell from the wall for the diagnosis.

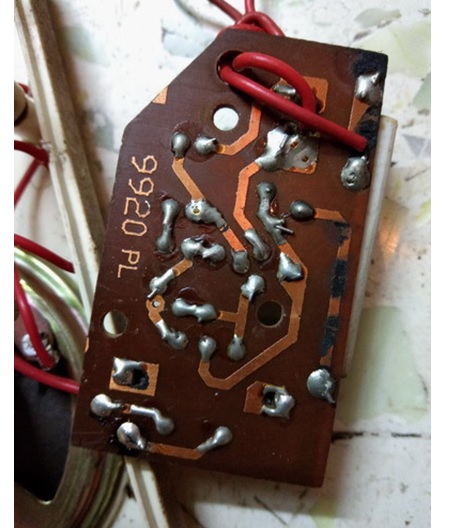

On opening I found visually everything is ok from component side as well from solder side.
Now started testing the components off line there is no short circuit or open circuit. So what is wrong???

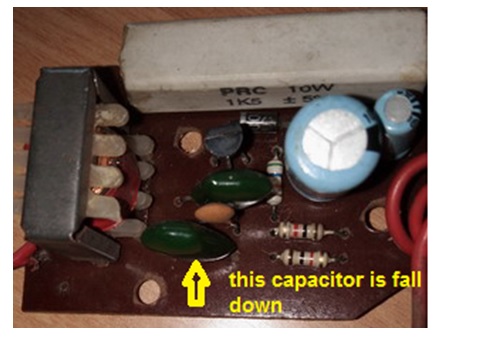

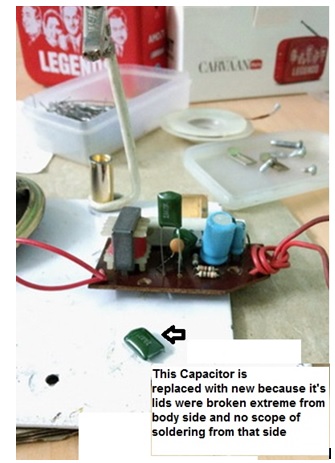

Again I have started visual inspection on component side and shaking the components one by one using my finger one ceramic capacitor fell down I have found the capacitor lids are broken from extreme leg side. That is because of corrosion.
Now a day’s many components makers using cheap iron metal instead of copper so that the service industry can survive……….!!!
Anyway replaced same capacity new Capacitor and checked the bell….. Found the bell is working now.
