Exit Sign (for the second time) Repaired

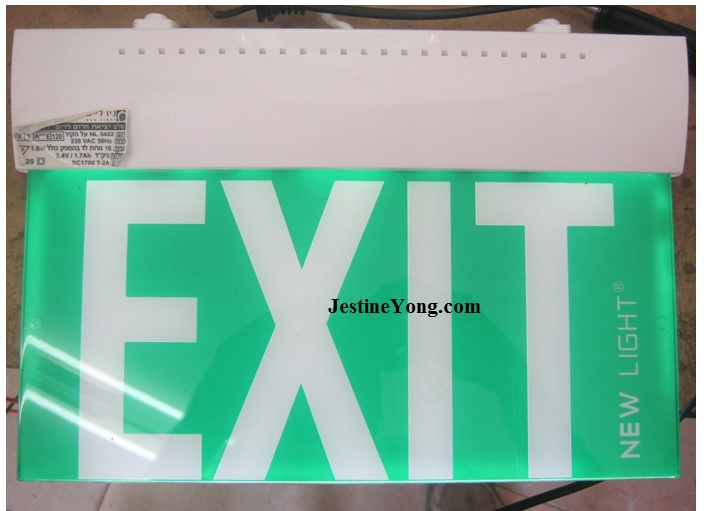

If you recall the latest repair job about the exit sign that had bulged capacitors and the backup batteries were replaced? Well, today I got the same exact sign but with different repair fault. Take a look.
The same customer walked into my shop and with a big smile on his face carrying the same exit sign that I repaired for him a while ago. As he explained the problem, he said that since he is in the restaurant business, Things has to be checked by the safety committee to make sure everything in that restaurant is in the top shape.
One of the things that had to be added to the restaurant was an electricity backup generator. An engineer came and installed the generator; the moment he fired it up, a lot of things in that restaurant blew up.
It is a good thing the varistor was still up and running. If you check out the photo, the varistor was split in half and it had to be replaced. A lot of technicians, they go and take it out of the circuit and power up the device and it works just fine. If an incident like this happens again, the result would be more damage to exit sign.

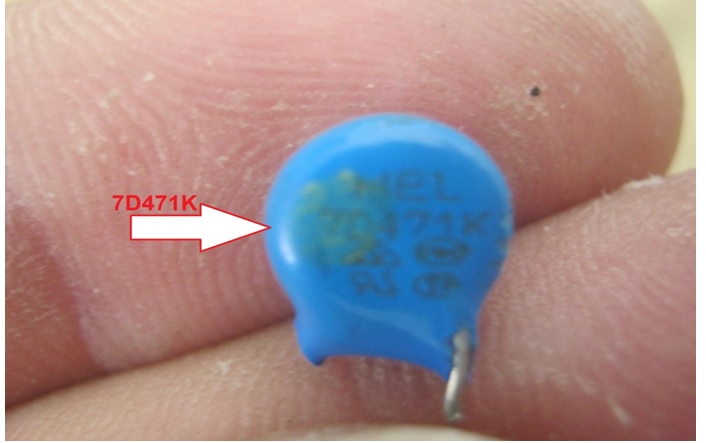

This was the blown varistor and it had to be replaced.

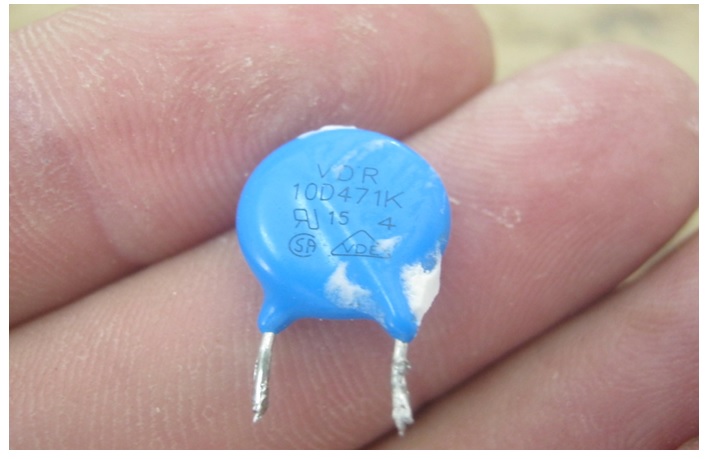

Of course I had plenty of them are found in my shop. As you can see it was 7D471K but I replaced it with this 10D471K.
And the result was a working exit sign unless an engineer comes again and mess it up.
Mission accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
