A guy brought me a fog machine that is working fine but with it has a remote control board that connects to the fog machine; the socket on that board was broken and needed some attention.

It has four wires to be reconnected to his socket but the question was which color goes to where?

It has five pins but only four wires and they were red, green yellow and blue. Checking on line for the right color pin out but there was no information whatsoever.

The only way was to make an educated guess and see how it works out.

The first clue was in the socket itself. Before I pull all the wires out, I saw that the yellow wire goes to this location of the socket and that was my first information to repairing the remote control board on this fog machine.

With that in mind I decided to look for the ground which is usually green. I traced it all the way back to inside the fog machine and I was right. Green was ground.

I soldered the green and the yellow wire back on the socket and started on figuring out the other colors.

The only wires left to figure out were the red and the blue. I connected the socket to the fog machine and powered the device but I got voltage reading on both missing pins. I was getting 5 voltages on one pin and 12 on the other. The customer informed me how the machine works which when powering on the machine, the red light should come on and the heater will kick in. In ten minute time, the blower will blow out the smoke.

Based on this information, I traced the socket inside the board till I got to the red light on board, which gave me indication that this was the stand by and it should get the 5 volts rail.

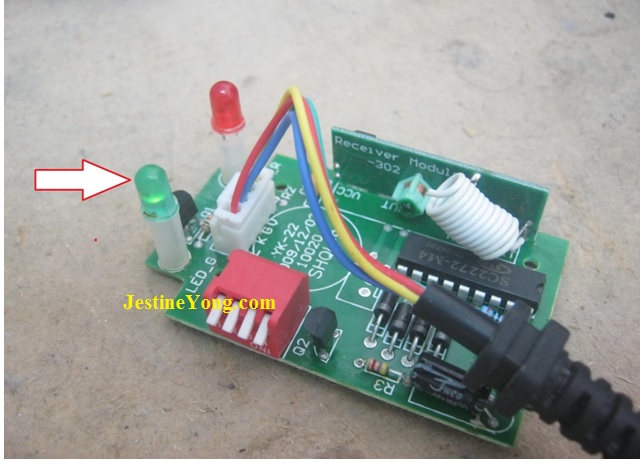

I connected that blue wire to the stand by light trace and the red to what was left on that socket. I powered on the machine, the red light came on and in ten minutes time, the red Light went out and the green light came on and suddenly, the machine kicked out a white smoke indicating all was well.

It was common sense and some guessing involved in the repair of this remote control board on a fog machine. The result was just fine.

Mission Accomplished.
