A dentist and a friend of mine brought me this game station for repair. He actually gave me a call about it Sunday morning when I was in church but I could not get back to him. At night when I returned his call he explained how his kid was disappointed when he got this game station as a gift but could not power it up.

game station port repair

It is china made game station and it is cheap.




He is willing to pay for repair simply because of his son and I respect that.

micro usb replace in game port

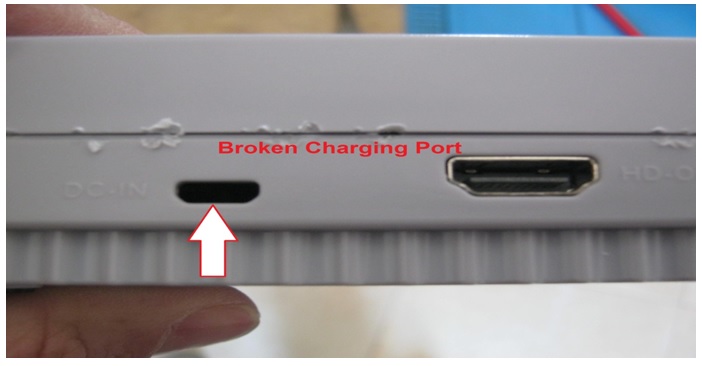

It seems like the charging port was broken due to the fact that the son tried to hock the power plug to the charging port and pushed it really hard and in the process he broke it. As you can see in the photo, someone tried to force the game station open because of the marks found on the edge of the device.

how to replace game port

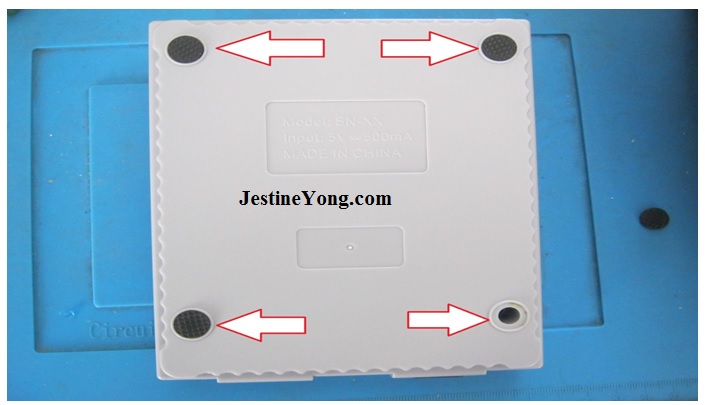

There is an easy way to open the device; just take these four screws off and the device is open. I actually said that to my customer and we busted laughing.

replace micro usb in game console

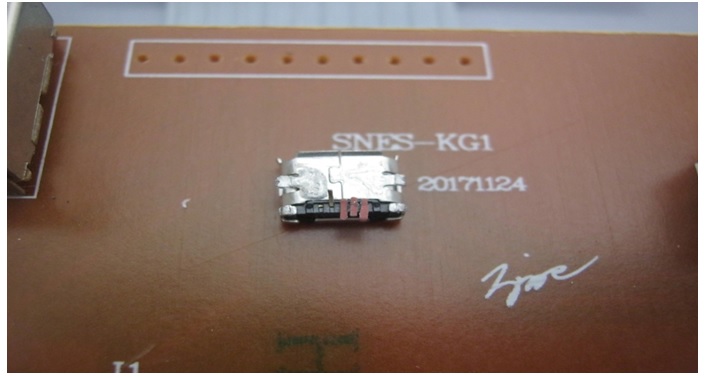

As you can see, the charging port was loose off the logic board and I found is laying inside the device.




The charging port was in bad shape and it had to be replaced.

usb micro port replaced how to

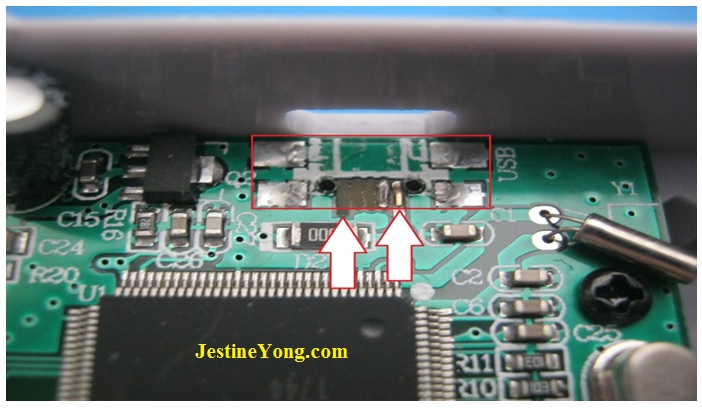

Two pins on that charging port were missing and lucky me, I bought recently a lot of charging port on the internet and I was able to replace it with the exact part.

easy way to replace micro usb

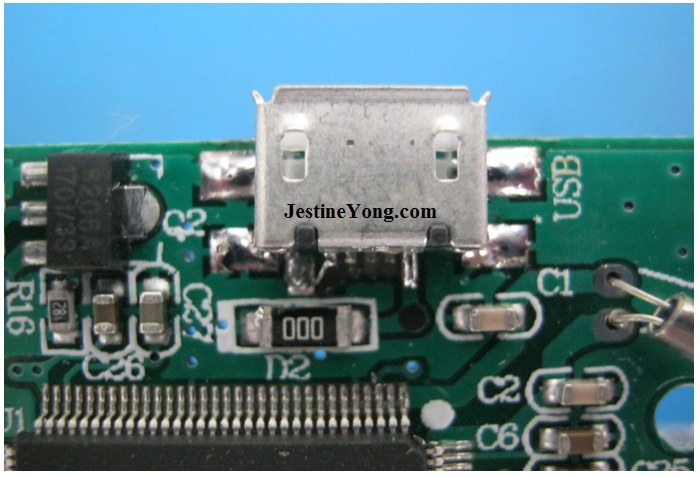

If you look closer enough you would see that this charging port has five pins but actually two pins only connected to the logic board. The far right was the positive and the far left was the ground.

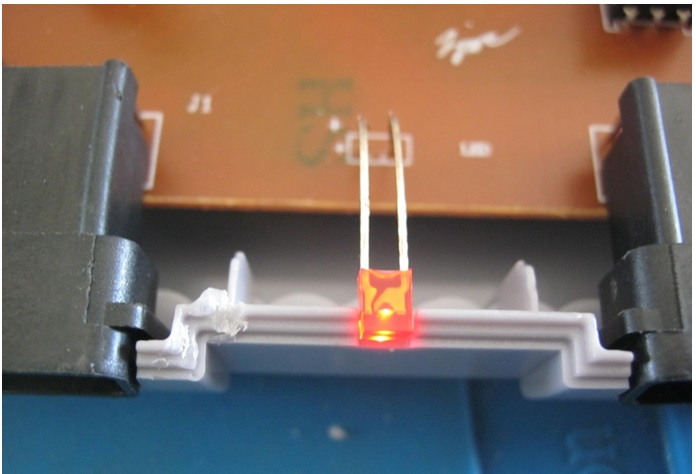

Once I get that soldered to the board and powered up the device, it came on and that put a smile on the customer’s son’s face.

how to replace micro usb the simple way

Mission Accomplished.
