A dead power supply was brought to me by my Pastor. This power supply is used to charge the transmitters and receivers that are used for translation in my church. When I powered up the power supply, the light did not come on indicating a problem in the device.

power supply repair

The output is 12 volts and the amp rate is 5A. The reason for high amp rate because this power supply charges up to about 40 devices at the same time.




Every device has two rechargeable batteries so you can imagine the output load on this power supply.

how to fix power supply

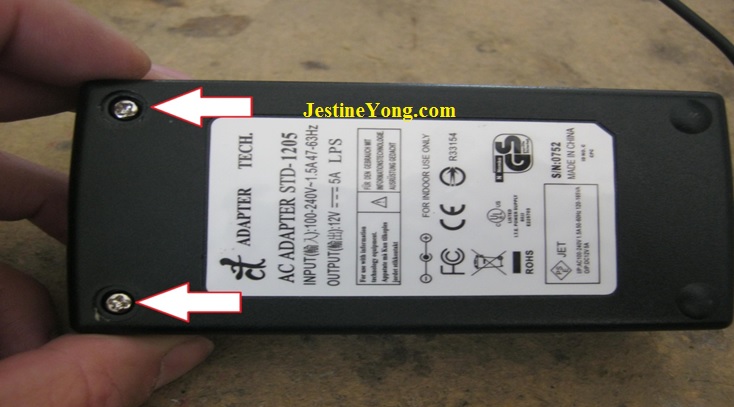

Take this power supply apart was so easy thanks to the only two screws on the bottom of it. Once these were off, the internal board was exposed and ready to be worked on.

how to repair ac dc power supply

As you can see, it looks clean and it seems like nothing was wrong with it. Once it was flipped to the other side, it was different story.

how to fix and repair dc power supply

The only thing I could see on this board was the cold soldering join found on the dark SMD resister. Sorry to tell, you that after re soldering that resistor, the charger was not even close to being fixed. The resister was in good working condition.




I have seen this happen very often in the power supply repair. The output cable sometimes gets shorted out causing the power supply to be dead. So, the next step was to disconnect the output cable and you can see in the previous photo, it was out.

fixing power supplies

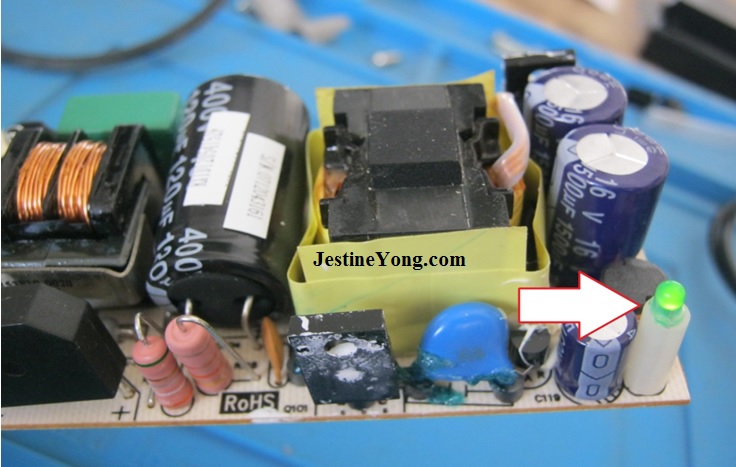

The light came one indicating a shorted output cable. Lucky for me, I have found a replacement in my shop.

how to repair power supplies

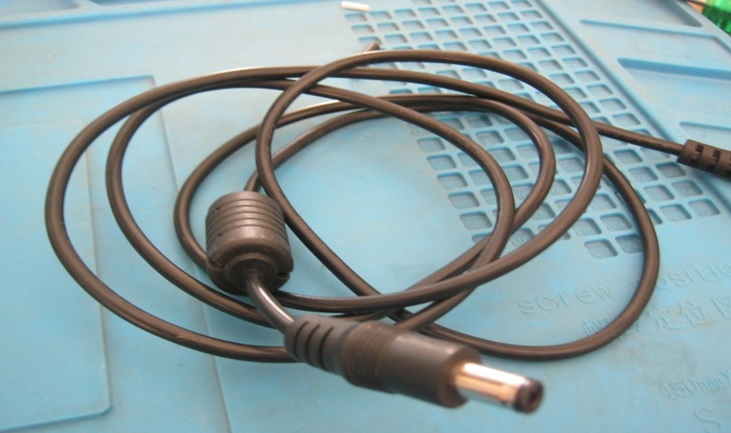

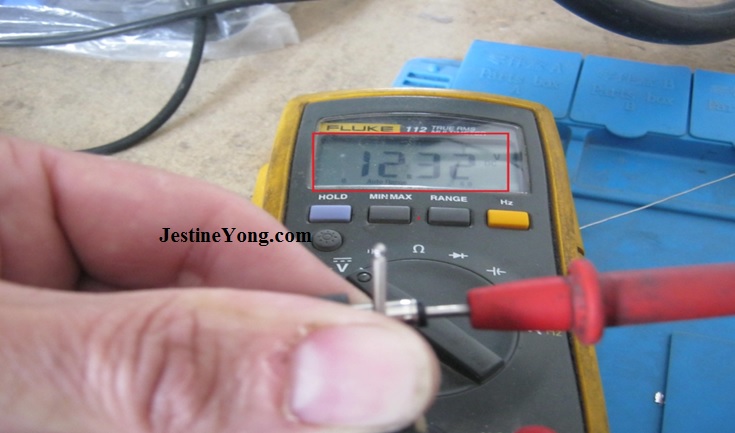

This is the new output cable that was re soldered back to the power supply. Once that was done, I powered up the power supply and checked for voltage ready, it was working fine.

fluke meter 112

Mission Accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
