My sister in law told me that she has an old laptop and it is not working any more. She was not sure which device was faulty, the power supply or the laptop.

targus power supply repair

I dropped by the house to see the problem and the moment I looked at the power supply, I knew where the problem was.

targus power supply fix

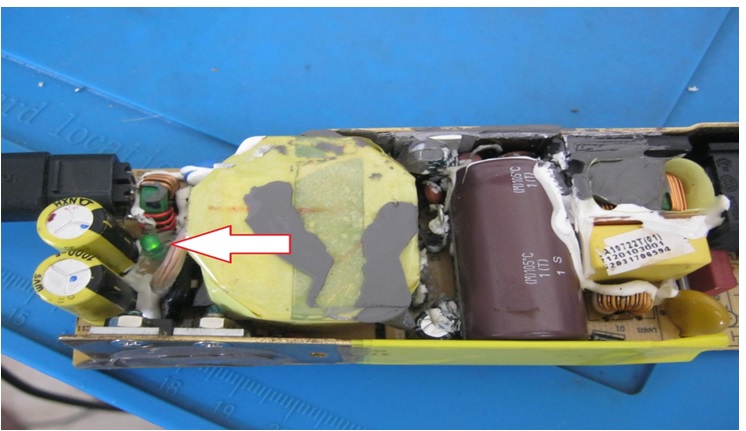

If you look where the arrow is, you can see that there is no LED light on indicating a problem in the power supply itself.

targus power supply repair and fix

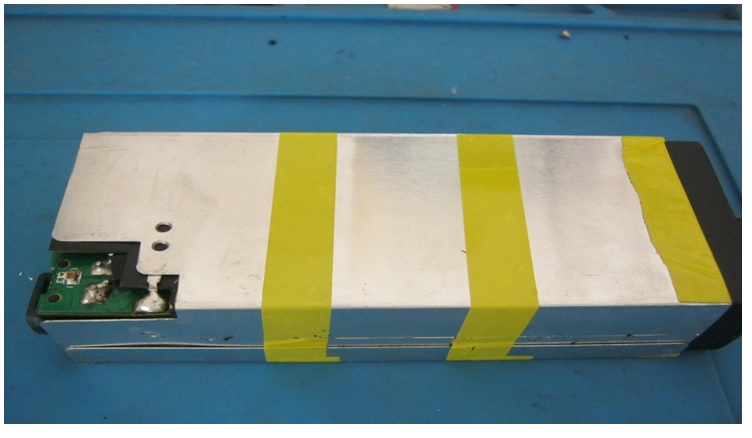

With a sharp fine blade, I cut the power supply open to expose the inside parts of it.




I had to desolder the shield ground off to get it off the power supply.

targus power supply repair and fix how to

Since there was no power, the first logical step is to check the main fuse. The fuse was fine. There was about 300 volts reaching the power supply capacitor indicating all is well before that point.

I checked all the SMD parts on it and all of them checked fine but what was causing the no power issue in the power supply?




I let the power supply sit on my repair bench for almost a day. When I came back the next day I started checking things out on the power supply. I thought of something that might be strange to some people. What if the LED light itself was shorted that is causing no power in this power supply. I have seen it happen before.

led shorted

The LED light was shorted as expected. It was reading both ways indicating a bad short on it.




The moment I replaced that shorted LED light with a green one (the only one color that I have in my shop), the power was restored.

power adapter led fault

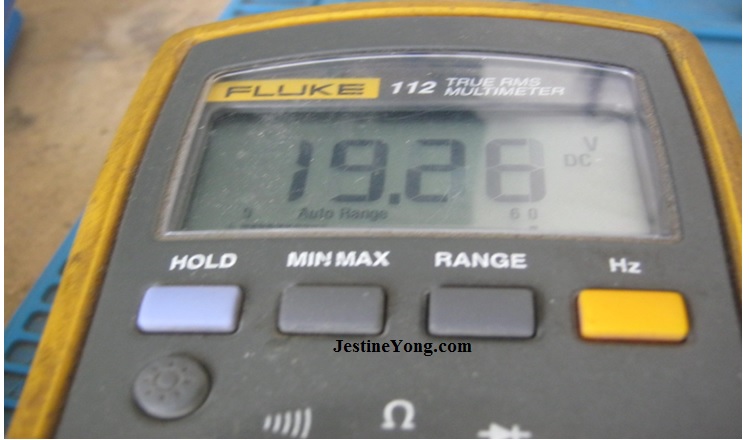

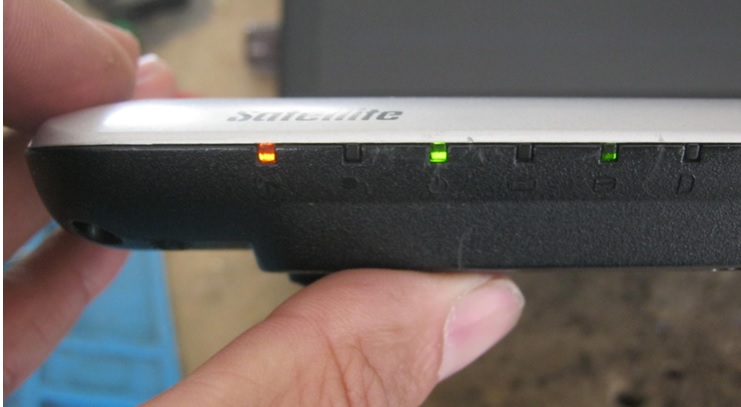

As you can see, the LED light is on and to confirm it, I tested it with the volt meter and the Laptop itself.

fluke 112 meter

fluke 112 multimeter

Mission Accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
