An electrician who works in a humanitarian organization nearby brought me a LED light device for repair. The moment I powered up the device, I could see the fault bright and clear.  The LED lights on that device were flickering.

led light repair

In this photo you can see LED lights that are off but in fact, the lights were flickering and I could not capture that with my camera. Usually, when it comes to LED light flickering my mind set goes to some bad capacitors that gone either high ESR reading or sometimes they get open therefore causing issues in the device.




The device was dismantled when I got it from the customer. It was an indication that someone worked on it but could not fix it.

gme esr meter

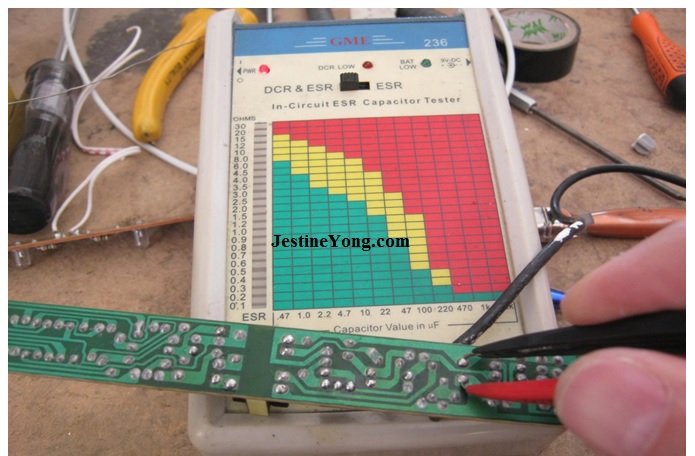

The first thing that came to mind is to check the capacitors for bad ESR reading. As you can see, the first one that I checked was 4.7 uf/400 volts and it checked to be open. As I continued to check for capacitors with bad ESR meter, I came across another bad which was also 4.7 uf/400 volts.

4.7uf 400 volt

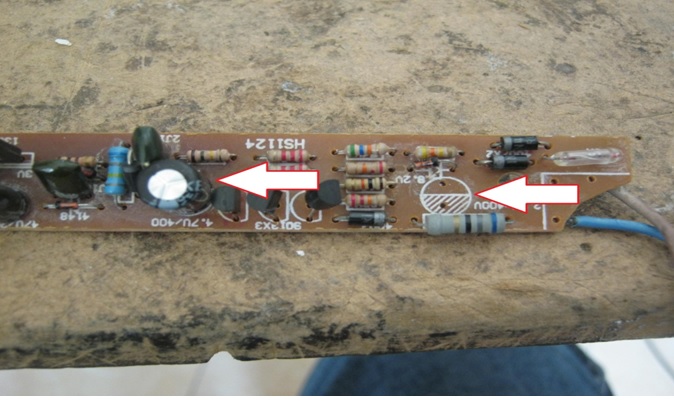

You can see the value of the capacitor printed on the board itself.

bad capacitor

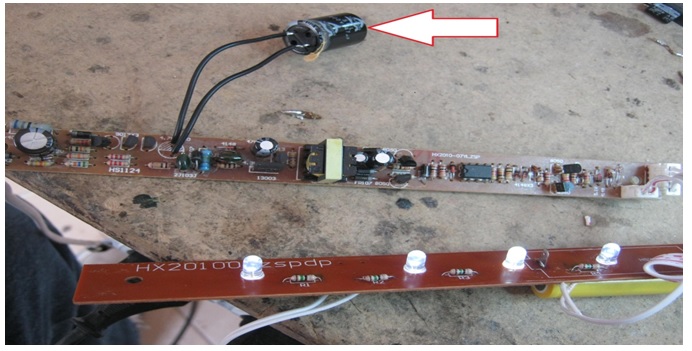

I had only one of the capacitors in my shop and for the second one; I had to use a bigger size one. As you can see, it was working fine.




The only problem is to find another small size capacitor to fit on that board.

fix board with bad capacitor

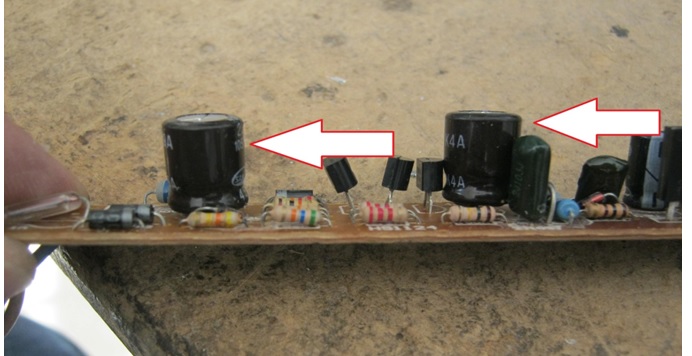

Finally, I managed to find the right size capacitor and it completed the repair.

bad ecaps

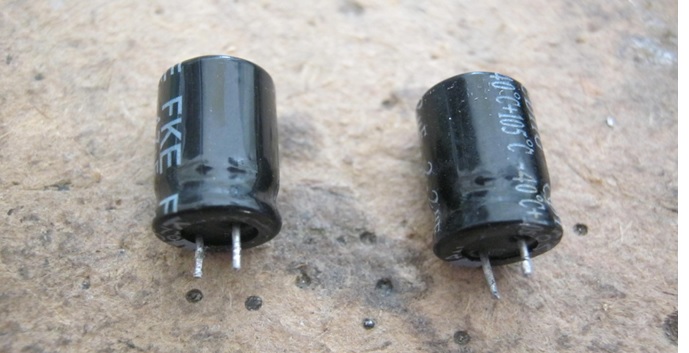

Only two bad capacitors found faulty on that board.

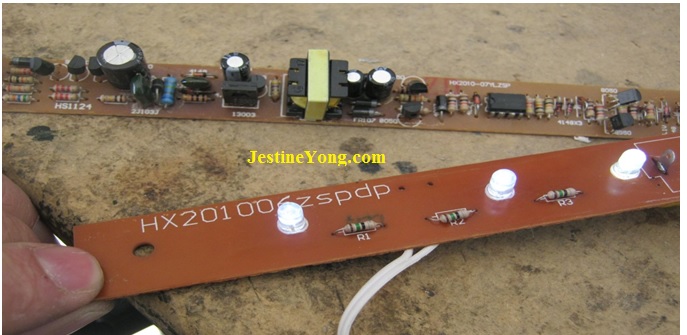

bad capacitors in circuit board

Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
