LOPT Tester Checked On Transformer’s Primary Winding In Power Supply
This 24V power supply was dead when it was brought to my shop. This is a power supply for a mini printer that this customer uses in this shop. Recently, this customer had power issues at his shop that caused a lot of damage to his electrical and electronic devices.

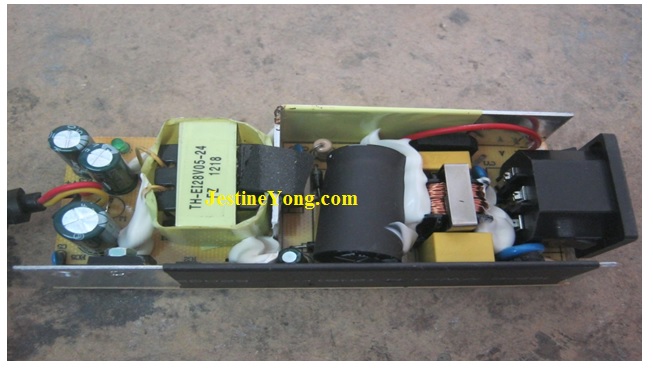

It was a normal power supply and I could not see any physical damage to it on either side of the board.
I powered up the devices and checked for voltages at the main capacitor but there were none whatsoever.
From the capacitor back to the bridge rectifier, when testing it with my multi meter set to diode, I came to a conclusion that it was shorted. And from a logical point of view, if that part is shorted, I am sure the fuse is open as well.

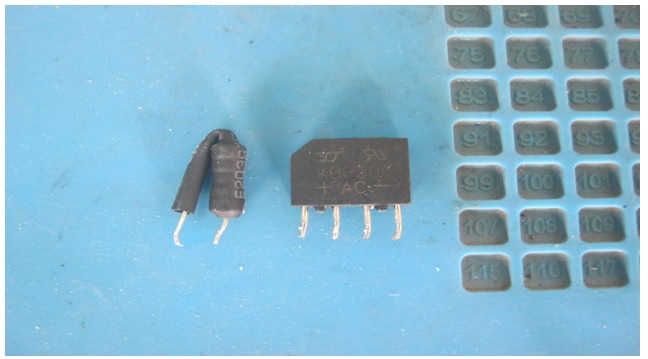

I de soldered these part off board and did further tests on them and it was confirmed that the bridge rectifier was shorted and the fuse was indeed open.
With my LOPT/FBT tester, I did more testing to make sure all was well. That is done by locating one of the probes on the Mosfet and the other probe on the main capacitor pin. According to the lights I was getting on my meter, everything in that area is ok.

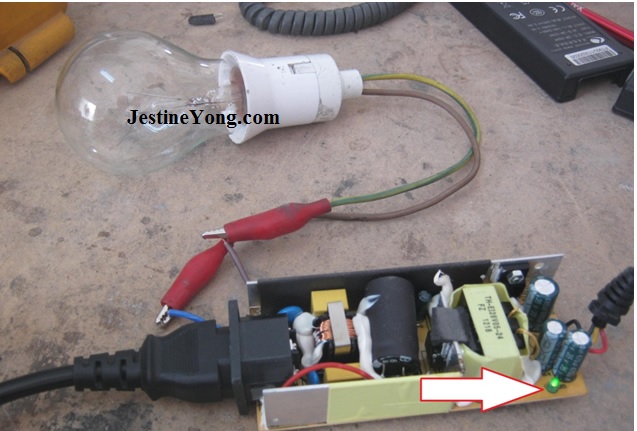

I replaced the bridge rectifier and soldered it on board but I did not add the fuse yet. To make sure there is no more shorted component, I added a light bulb to the two pins of the fuse. Now, if the light bulb came on or stayed off, it means all is well to add the fuse but if the light bulb came on and stayed brightly on, we still have shorted components in that charger.
In my case, the light bulb stayed off and the charger LED light came on indicating all is well and that it is safe to put the fuse back on board, put the charger together and then give it to the customer.
Mission Accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
