Overheated 6 Watt 2 Channel Power Amplifier IC CD4440
A customer brought in this 5C Amp999 Stereo Amplifier for me to repair and the complaint was no sound output. This stereo amplifier can be turned On but no sound at all.

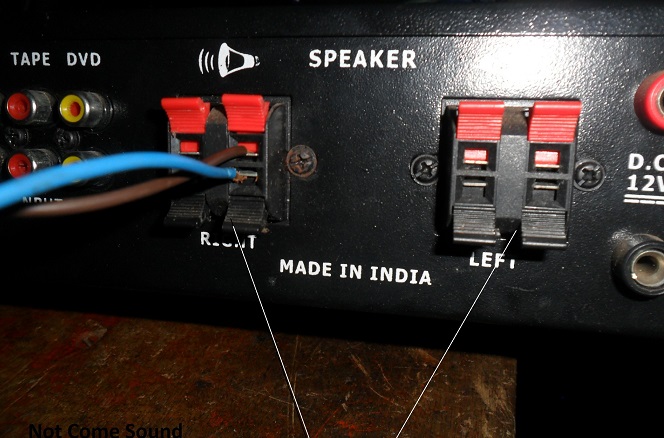

I connected the speakers at the output of the amplifier to double confirm it and indeed it was totally no sound.

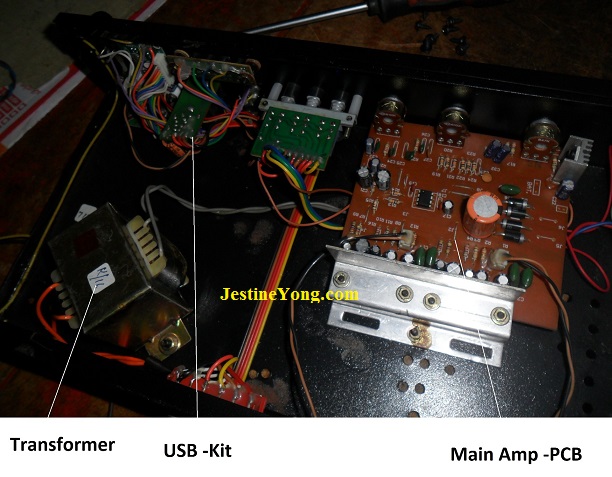

I opened the cover and saw a linear transformer, USB Kit and the main pcb-see the photo below:

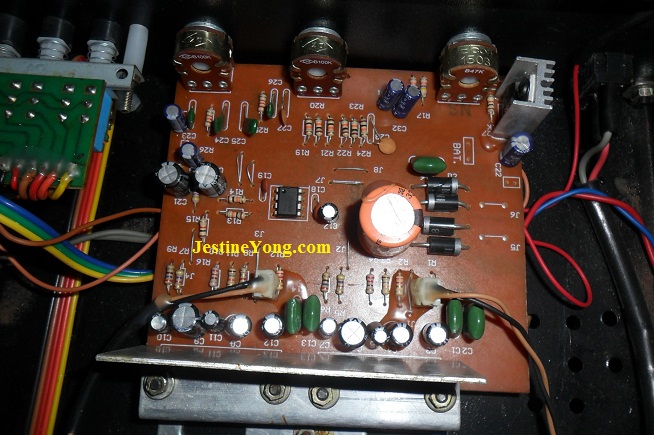

I focused on the main PCB because this is the heart of the amplifier.
From visual inspection, it seems that all the components were good and the wires connectors were also intact.

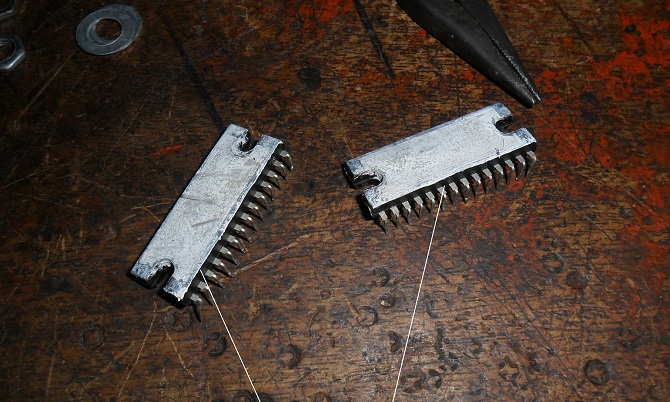

However, there was only one problem that cannot be detected with visual inspection and the problem was overheated IC. I touched both the power amplifier ICs ( CD4440) and both were so hot.
I took out the overheated ICs and replaced with another part number and brand which were the Sanyo LA4440 IC -see the photo below:
You can view the IC datasheet by clicking on the photo below:
Once the new ICs were fitted and powered On, the sound came back and I was delighted
Conclusion- Assuming after the replacement of the ICs and still no sound, then I have to check on all the nearby or corresponding components since the DC supply voltage to both the ICs were within range. If you want to learn how to accurately check electronics components, you can get Jestine Yong’s ebook here-fully recommended.
This article was prepared for you by Suranga Bandara who owns an Electronics repair shop in Anuradapura, Sri Lanka.
