Retrace Line and Red Background in TV Repaired
On call from one of my friends about his TV which works intermittent. symptom he stated as audio is ok but sometimes all of sudden picture disappears and screen become red with some horizontal lines.
It was Sunday so I have made plan to visit his home as he is staying in same building.
So on visit his home and powering up the TV – I can see the same symptom as stated by him. So I have opened the TV for the fault finding

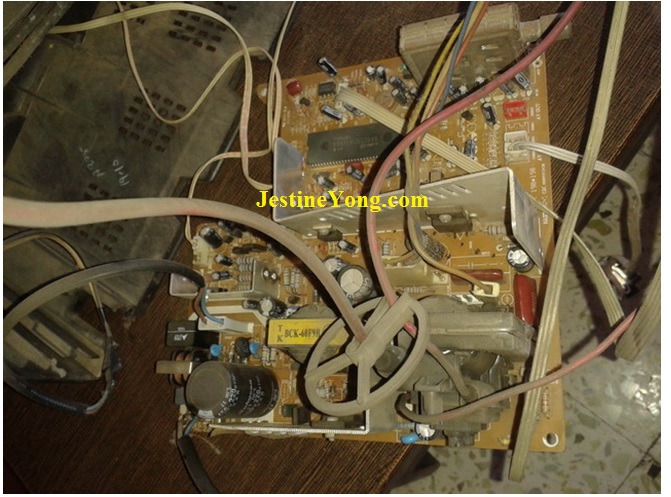

This is a china kit I have cleaned the dust with help of brush and start visual inspection on component side I did not found any suspected sign of physical damage. I have tested with help of the screwdriver handle by taping on the PCB but there is no effect on the screen (On taping you can find exact location of loose connection or dry solders on the PCB).
Then I have started inspection on CRT PCB just for reference because it was red color on full screen and this PCB having RGB amplifier section on it. So I took out the CRT Base circuit and on visual inspection I found color on the PCB Component side tuned darker near some components. So first I have decided to do some voltage test before disturbing any component. So first I have to check voltage between 135 to 180V DC on RBG Transistors Collector of all three transistors.
On PCB Component side I found these transistors marked as V902 /V912 /V922. So I tuned the PBC back side to find which transistor is belong to which color. But surprisingly I found there is no marking either on component side or solder side!

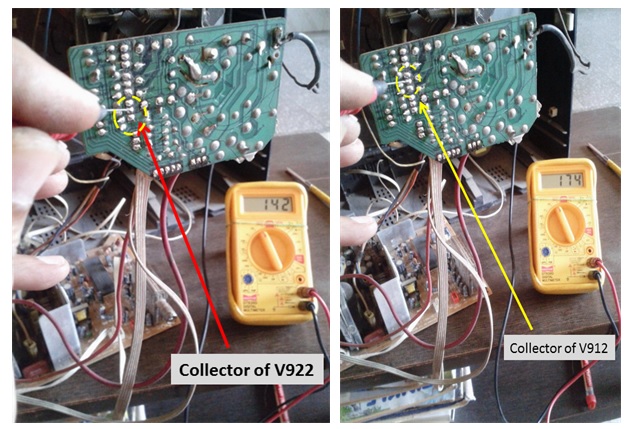

Now I have stared voltage testing. First I have tested collector of V922 I found 142V DC.

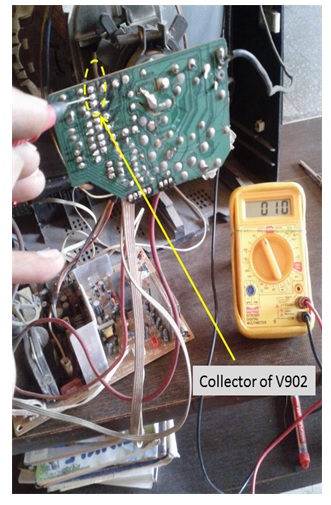

Found 174V DC on V922 & on V902 I found 10v DC
So suspecting this transistor I have removed the transistor and checked it with the multimeter, out of the circuit but it seems ok.
So on doubt may be under load this can behave differently I have interchanged the transistors as these three transistors are of the same value.

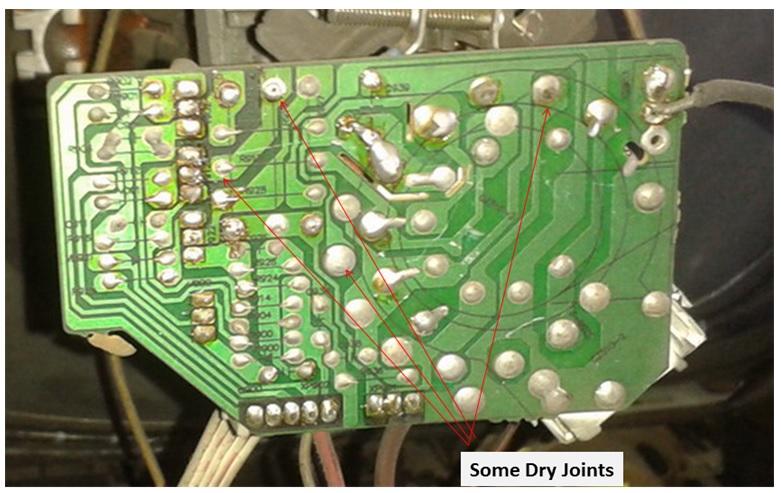

But the problem is same. So using my magnifier I have inspected the CRT PCB and found some dry solder.

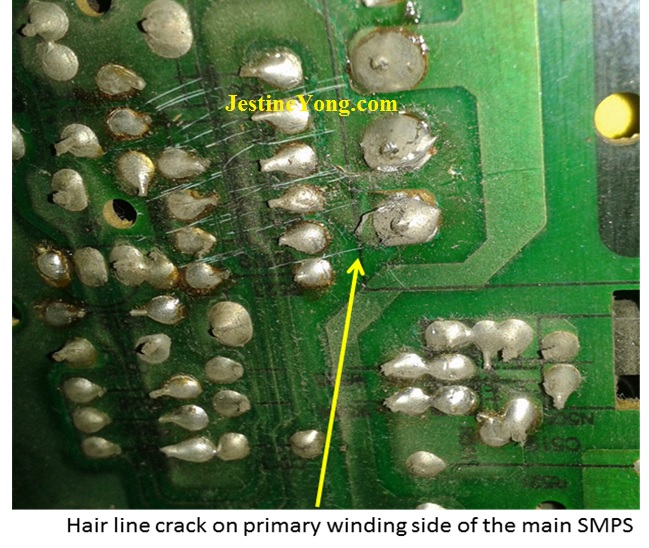

With this I have checked main PCB also with magnifier look what I found
So after doing this dry solders and hair line crack repair I have turned on the TV
TV is back to the life.
