Welding machine comes on but does not weld. Model: ARC-200

This guy walked into my shop and told me that one of my customers recommended me for a welding machine repair. I was so happy to hear that but at the same time put some pressure on me to get this machine fixed.

welding machine repair

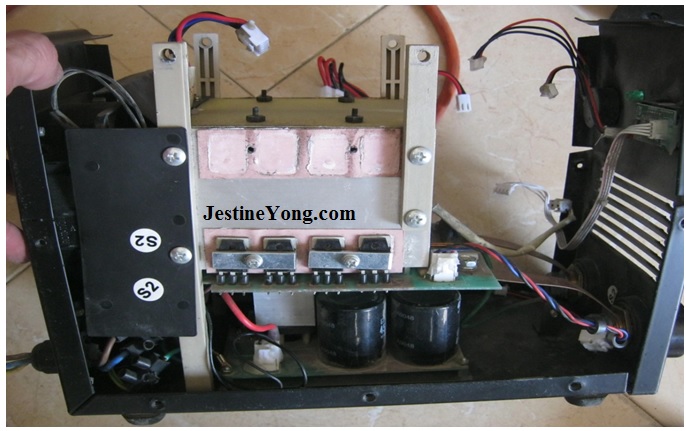

This is a classy Turkish made that has a digital amp display on board. As you can see it comes on but I tried to weld with it, it was not working.




When I tested for voltages on the negative and positive terminals of the machine, there was none.

arc200 welding machine repair

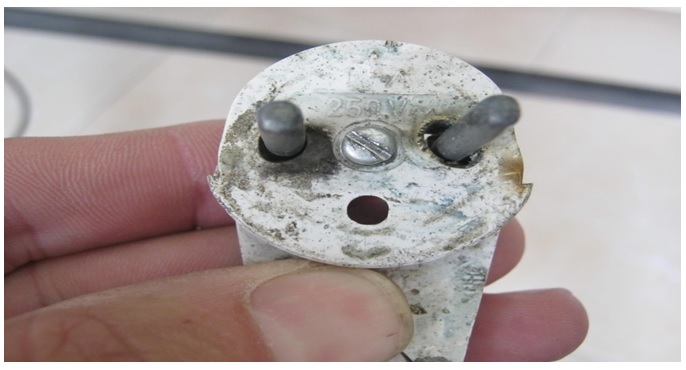

I always check the power plug that the machine comes in with. And as you can see, it is damaged and it has to be replaced. I added a temporary one so I can test for voltages on this machine.

how to repair welding machine

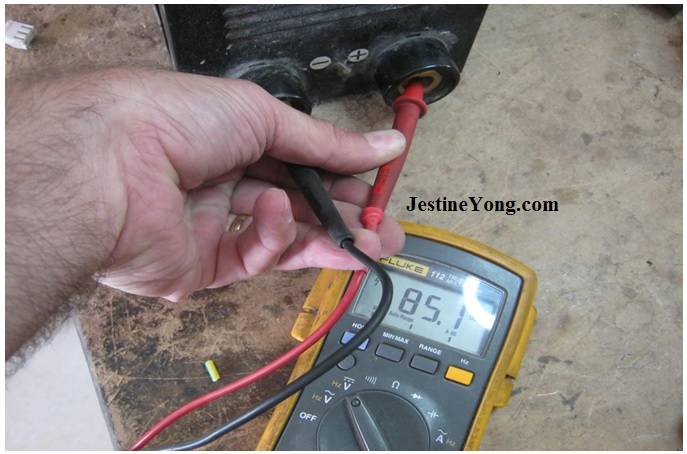

Voltages were fine on this machine. Usually when voltages are present but missing in the positive and negative terminals of the machine, I go directly to the main and secondary logic boards and that is not easy to fix.

how to fix welding machine

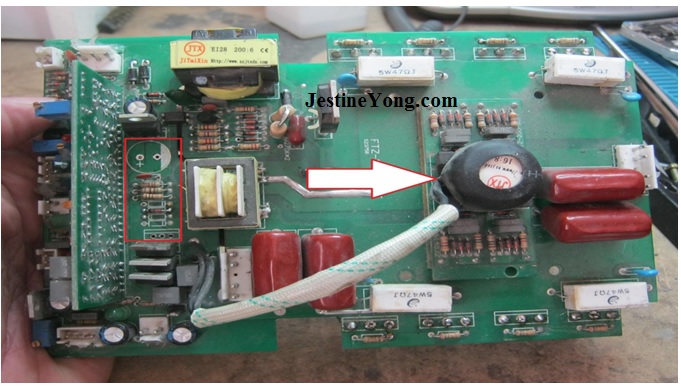

The stand up board is the main logic board and the one sitting flat is the secondary logic board. Both of these boards supply voltages to the output of the machine in order to weld.

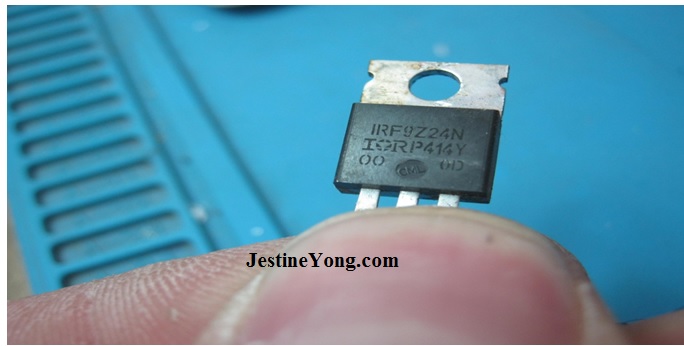

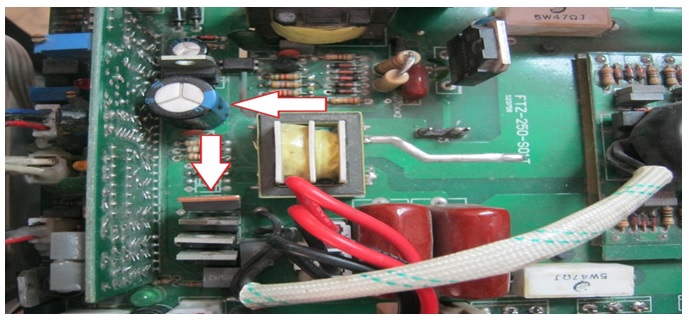

While checking for bad parts, I found one faulty part. It was a Mosfet IRF9Z24N. It was shorted on all its pins.

how to fix and repair welding machine

It has a high amp rate and I have to come up with the same part of a replacement and either way, it was not easy to find. I found the original part on Aliexpress for cheap but it would take up to 25 day to get here.

As I was looking around, I found a replacement part which was IRF9530 and I found it in a local electronic store.

service welding machine

This Mosfet was connected between the main and secondary logic boards which considered a very import part of the circuit. In other words; if I replace the shorted part with a new part then it got shorted again, then we have a serious problem in moth logic boards.

repairing arc200 welding machine

I replaced the shorted part with a new part and powered up the machine. As you can see in the photo, I got voltages and the machine is up and running.

Mission accomplished.

waleed

This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
