SJ2822M IC Fault
Recently I decided to buy new speakers for my laptop. They have much better sound and uses USB port to connect to the laptop. The old ones that I have, can be powered on but there was no sound. Today, I decided to get them fixed because a friend of mine was in need of speakers and I was willing to get them fixed and offer them as a gift.
They used to have good sound and I had them for almost five years till they stopped producing sound.
Since there was no sound and I have power, I headed directly to the sound IC and I was almost sure that it was the main problem.

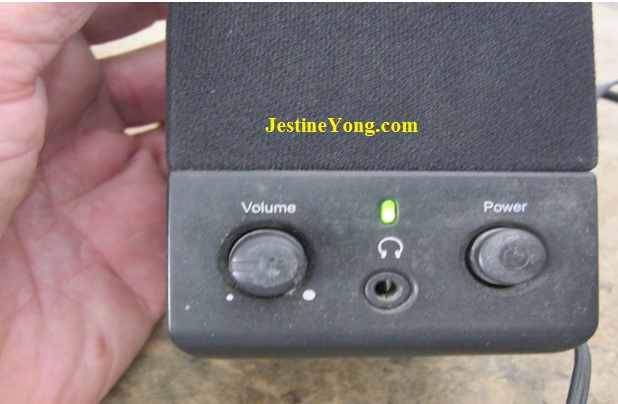

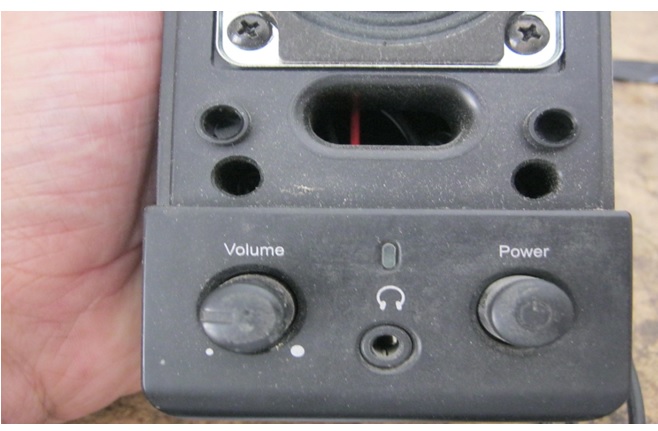

To get inside the speakers, I had to take the speaker face off to get to the screws.
Two screws on the bottom and two screws on top. Once the screws were off, I could see inside the speakers.

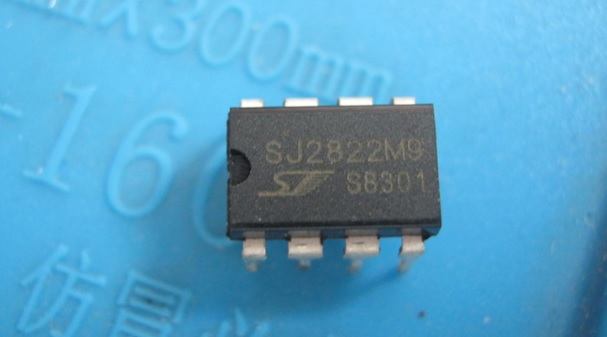

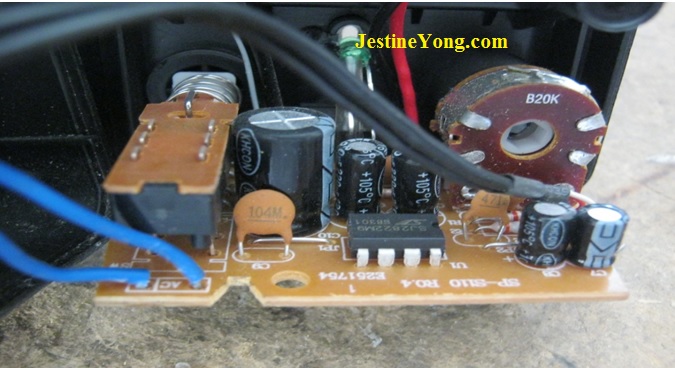

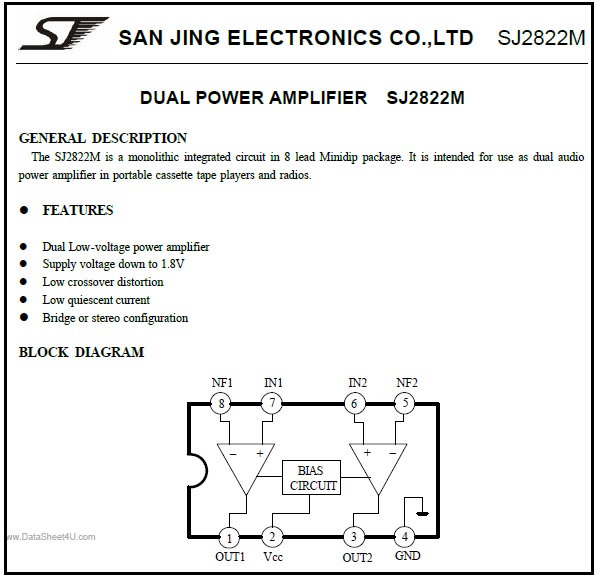

As you cans see the speaker board inside; my thoughts were focused on the amp IC on that board. The part number is SJ2822M9 and the datasheet:
I did not even bother checking voltages on it, because I was more than sure that the problem lays in that bad chip.
Once it was taken off board and found out the part number, I found exactly like it in my shop.

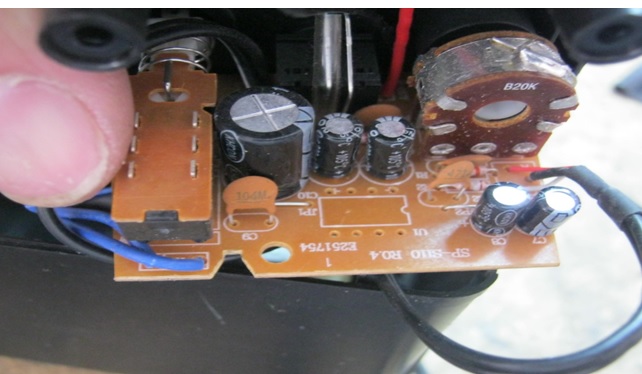

As you can see, the IC was off and once I made sure that the board was clean, I installed the old replacement on that board.

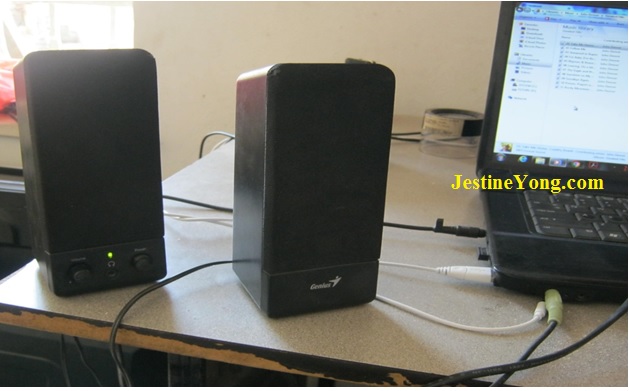

I put everything back together and I hocked up my speakers to my laptop and as expected, the sound was back and it was good.
I called the guy and he came and got his speakers; he was happy. It is not always about money and income but it is about putting a smile on someones face. Mission Accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
