Turkish Made Welding Machine Brought Back To Life
The welding machine business is blooming as a lot of welders are bringing their machine to be either fixed or maintained. Unfortunately, not many welding technicians think of maintaining their machine but most of them bring them when the machine breaks down. So sometimes I get machines with tough repair and sometimes I get a machines like this with just a minor one, take a look.
All welding machines have different sizes and different shapes but one thing in common is the inside. They all function the same way, parts do the same job even if they have different part number.
As I took the cover off and looked inside this machine, I could see some dust but not much; it looked normal but if you look closer you will see the fault. Do you see the fault?

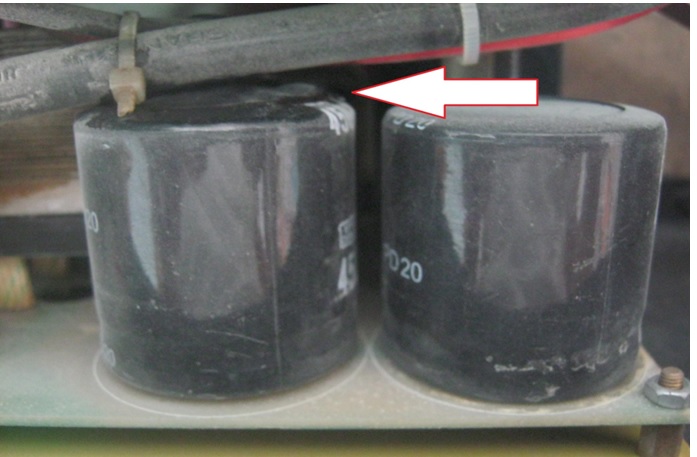

Here is a close up of the problem, do you see the fault? Every time I open any welding machine, I look here and check the main capacitors. It is a good procedure to do that.
To get this bad capacitor I have to take off four screws beneath that metal plate.

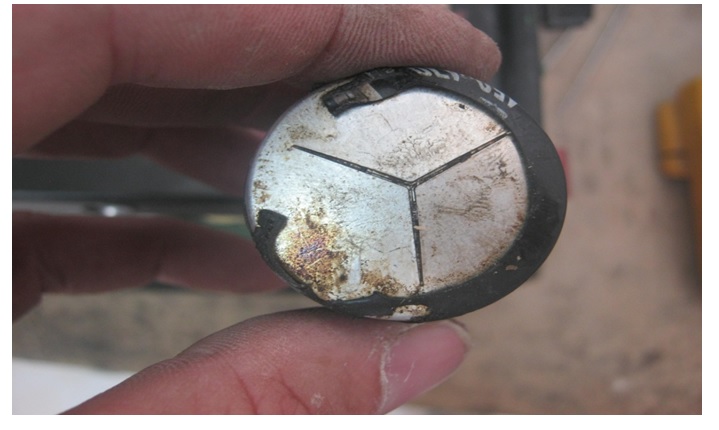

It was 400 volts 470 uf and I already have the part ready I my shop to replace this one but the question here, is it the only fault here or there is more?

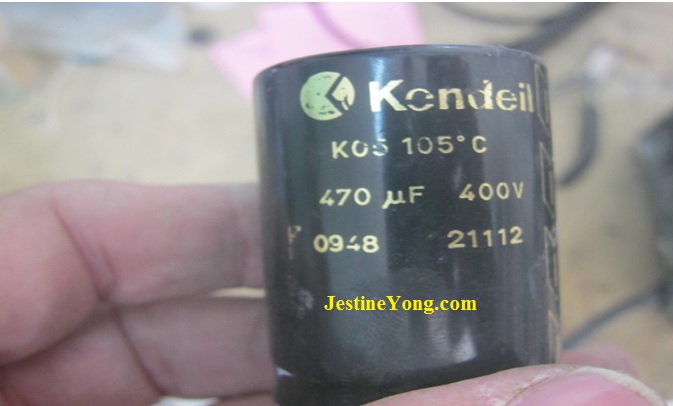

This is a used one that I have plenty of in my shop but I know it is working fine and it will fit as a good replacement for that bad capacitor. Once it was replaced, I checked for other faulty parts, bridge rectifier and around that area, I could not find anything wrong so it was time to power on the machine and hope for the best.

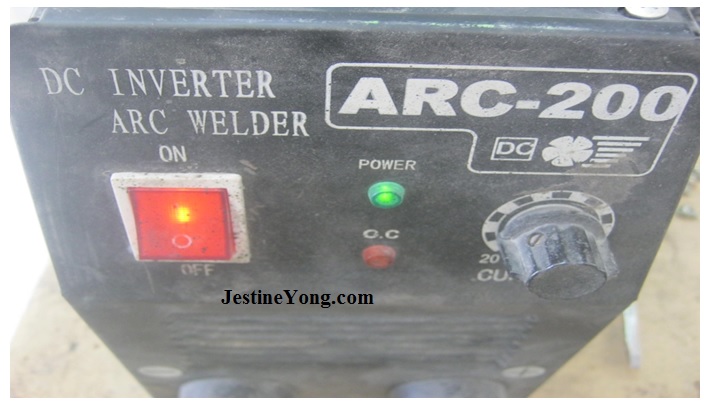

Seeing that green light coming on was a very good sign but further testing is needed to make sure all is well.
It seems like all is well. If the red light was on, then we have big issues here that have to do with either the transistors or the Mosfets.

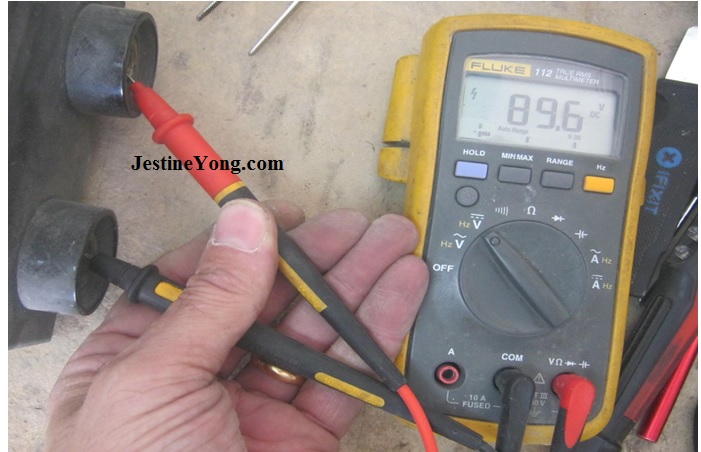

This is the test that I was looking forward to see. If I do not have any readings here, then the machine would not work. Glad to see these readings here and based on that, the machine is up and running.
Of course it has to go through some tough welding at my brother’s welding shop just to make sure all is well.
It was tested and found up to its welding specifications.
Mission Accomplished.
