Two K50T60 Mosfet Burnt

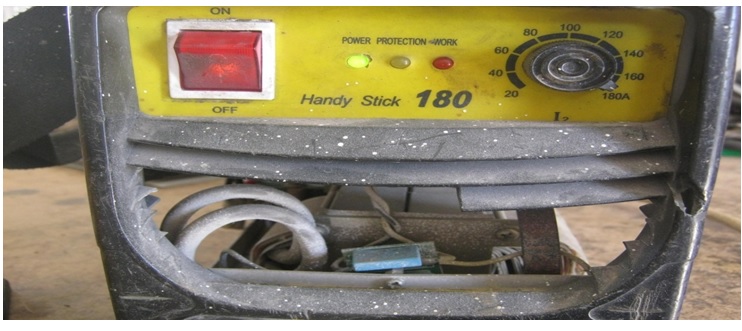

My brother, who in the welding business brought this to my shop, His shop is right next to mine. He did not know what happened to it but suddenly, it stopped working. When I powered up the machine, I could hear something rapidly ticking inside.
I took the cover off and got the main power board.
I powered it again, and the ticking noise was coming from the main power relay of the machine.

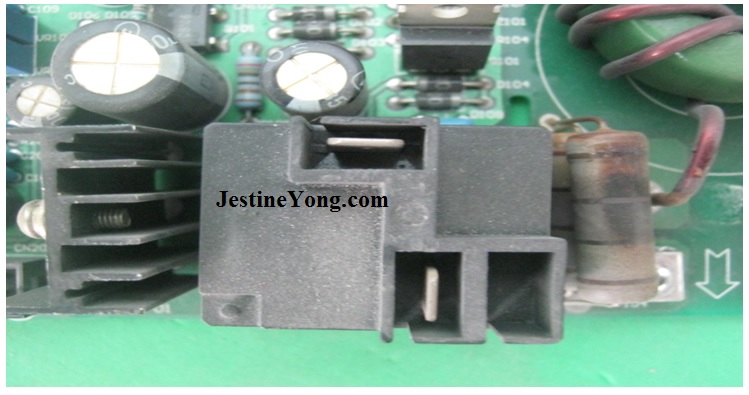

This is a close up of the black relay that was ticking.

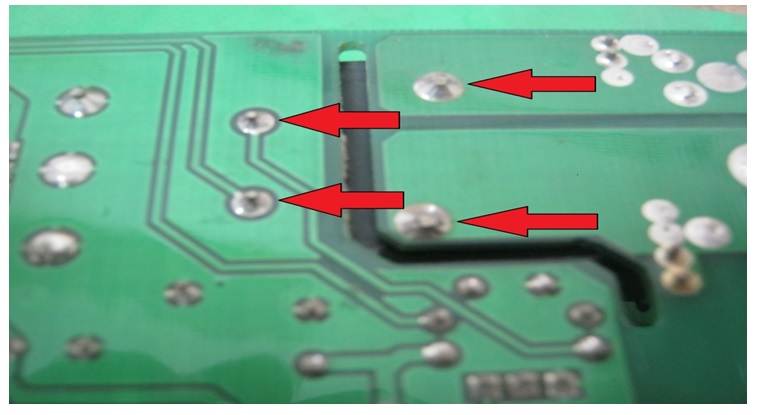

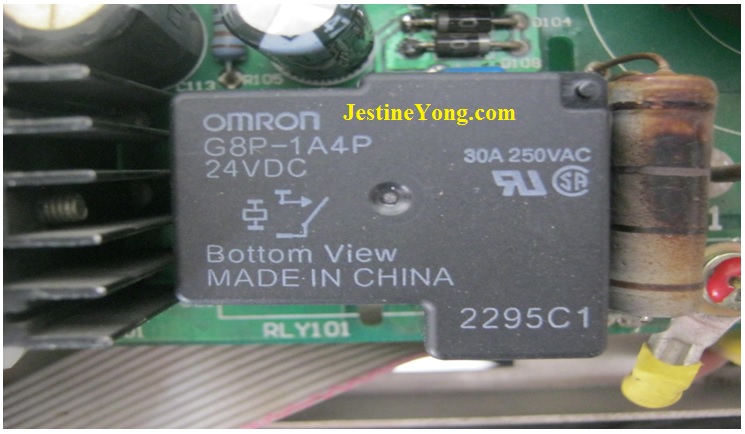

I flipped the board and I checked the main pins of the relay, they were fine. I measured the power reaching the relay and it was fluctuating. I took the relay and tested it with a 24 volts power supply, it checked out bad so I replaced that part with this one. 24 volts and 30 amps relay. Same specification yet different look.
I powered the machine and the ticking stopped but it was not welding and the yellow light came on indicating either over heating or shorted Mosfets.
I was about to check the Mosfets, when I saw this damage.

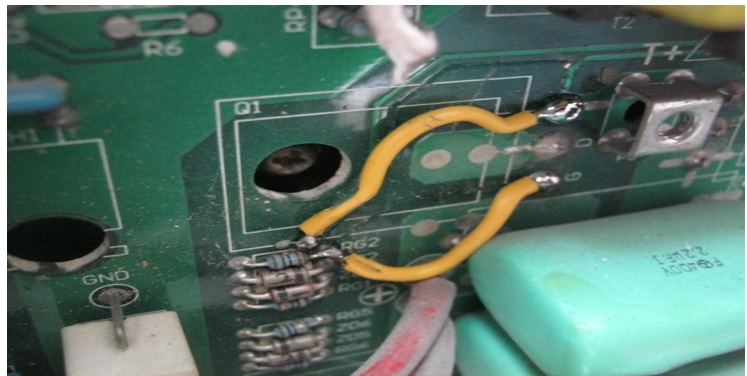

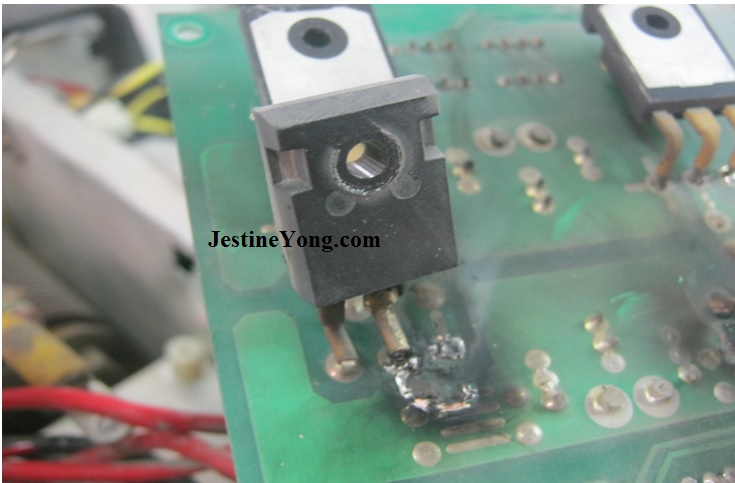

I saw this and right away, I knew there was something wrong with the main Mosfets. The damage that you see in the phone is connected directly to the Mosfets beneath it. Take a look

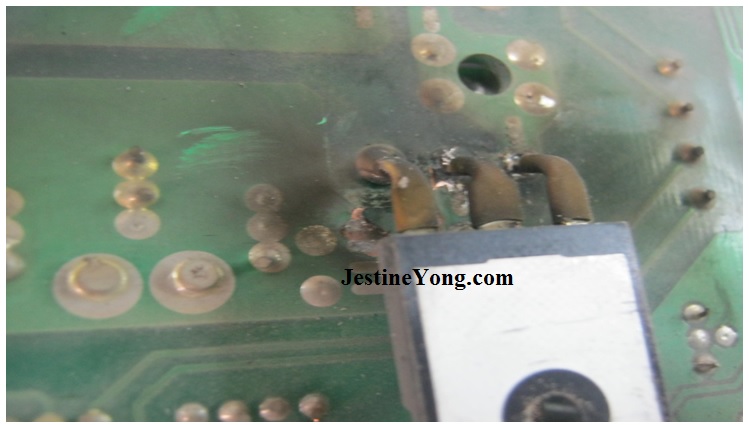

That is one of the Mosfets.
And here is the second one. It was K50T60 Mosfets

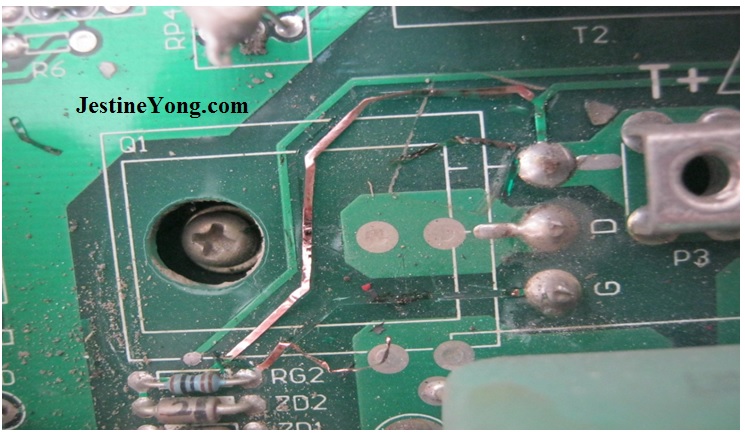

I found the exact replacement at my shop. I replaced both after cleaning and connecting the bad lines on the main board.
Once it was put together, I was ready to test the output on the machine.

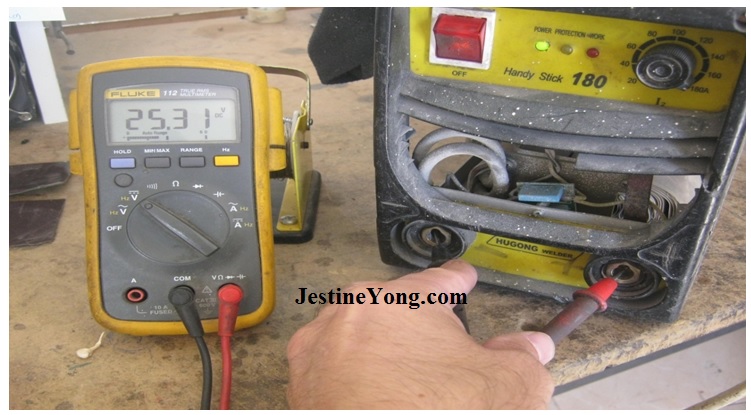

As you can see, the protection yellow light was off and only the power indicator was working. I tested the DC output voltages, well, check out the photo:
It was a challenge but it will be fixed if you put your mind to it. Mission accomplished.
This article was prepared for you by Waleed Rishmawi, one of our ‘Master Authors’ and currently working in the Bethlehem area of Palestine repairing electrical and electronic equipment.
